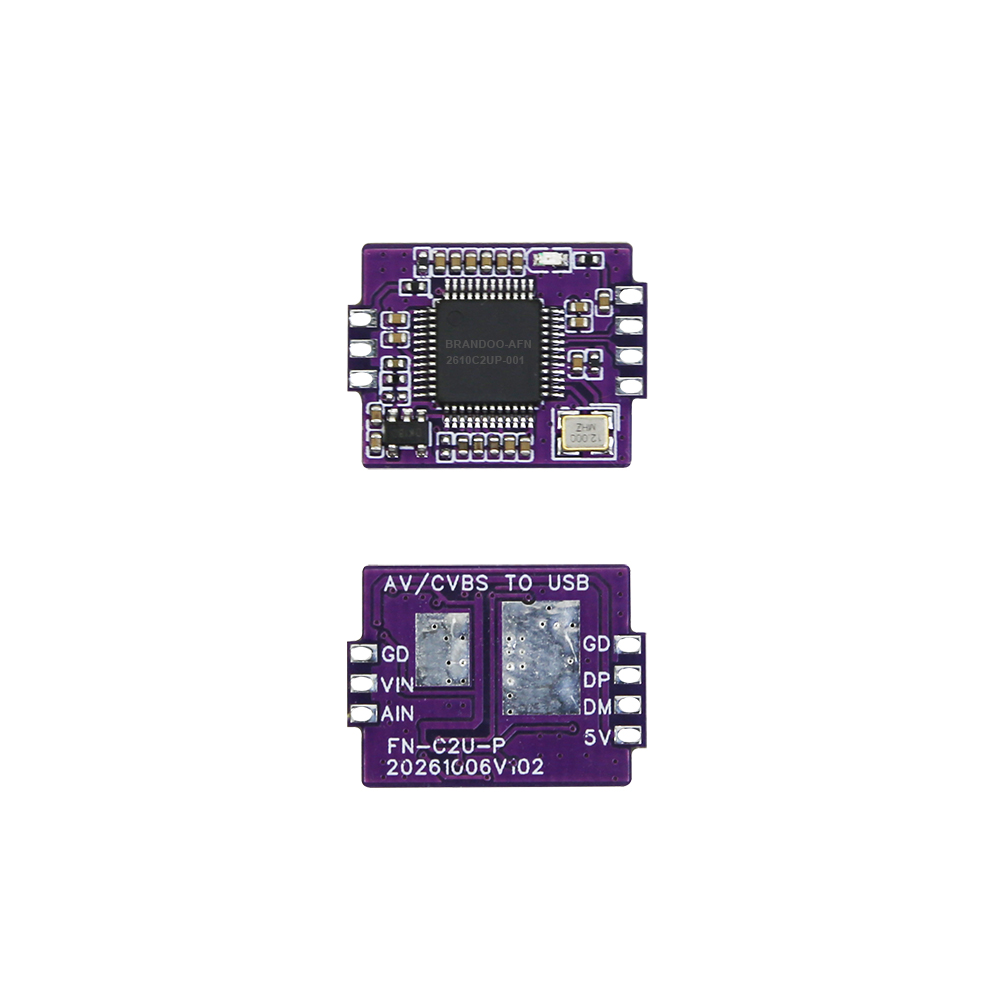

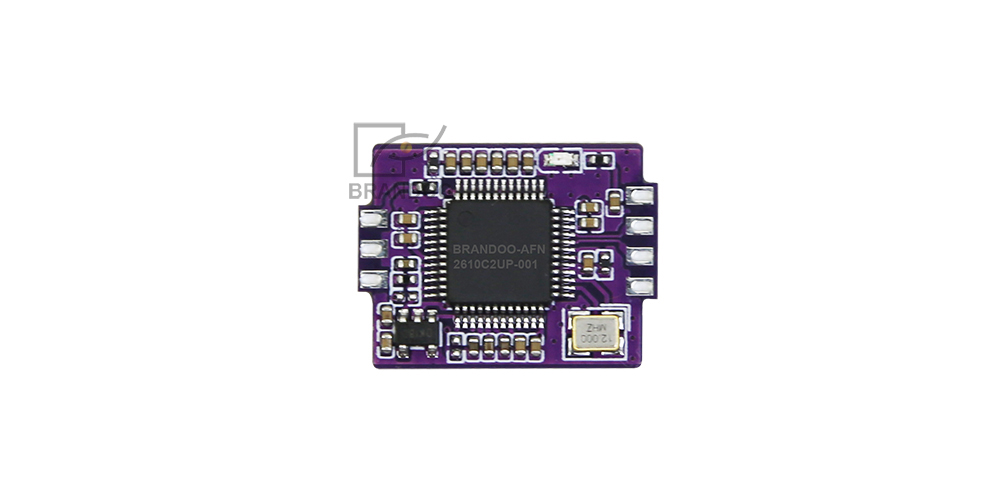

Analog AV to USB Video Capture Model C2U-P
It is an Analog (CVBS) to USB video capture board which support max. 1080P@30F/S or 720P@60F/S video captured to PC or Smartphone.UVC standard and driver free. We are original developer and OEM orders are welcomed.
- Details
Features:
> Analog signal input, USB output
> PAL/NTSC auto detect
> MJPEG and YUY2 Format
> 1080P@30F/S or 720P@60F/S in MJPEG
> 720X576@25F/S in YUY2 format.
> 2.0mm pad pitch
> 2x1.5cm micro size
> Driver free
> Analog signal input, USB output
> PAL/NTSC auto detect
> MJPEG and YUY2 Format
> 1080P@30F/S or 720P@60F/S in MJPEG
> 720X576@25F/S in YUY2 format.
> 2.0mm pad pitch

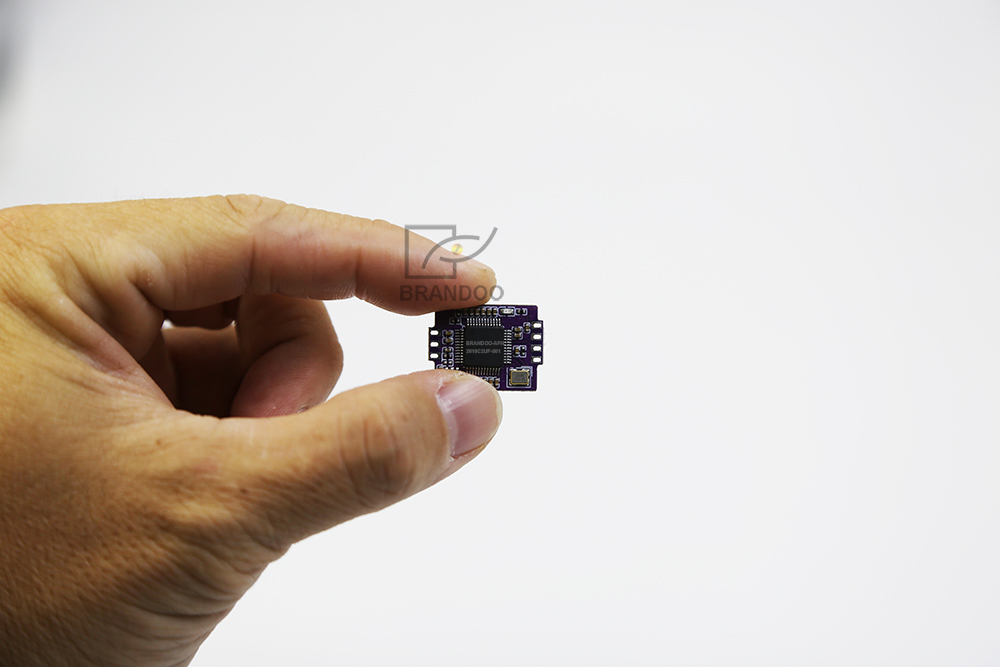

> 2x1.5cm micro size
> Driver free
> UVC/UAC Standard
Specifications:
| Item | Data |

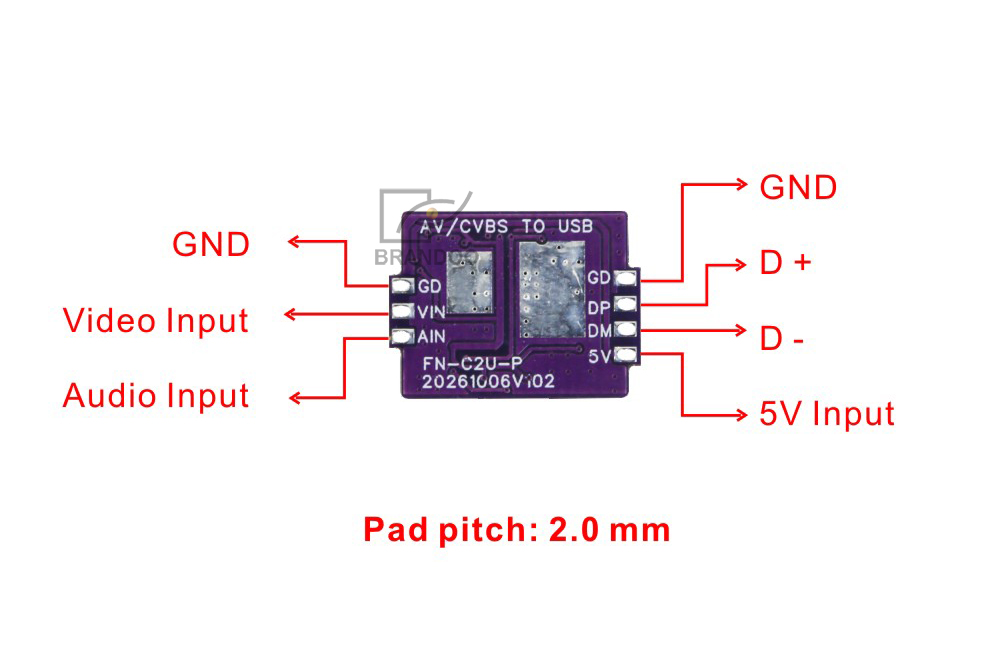

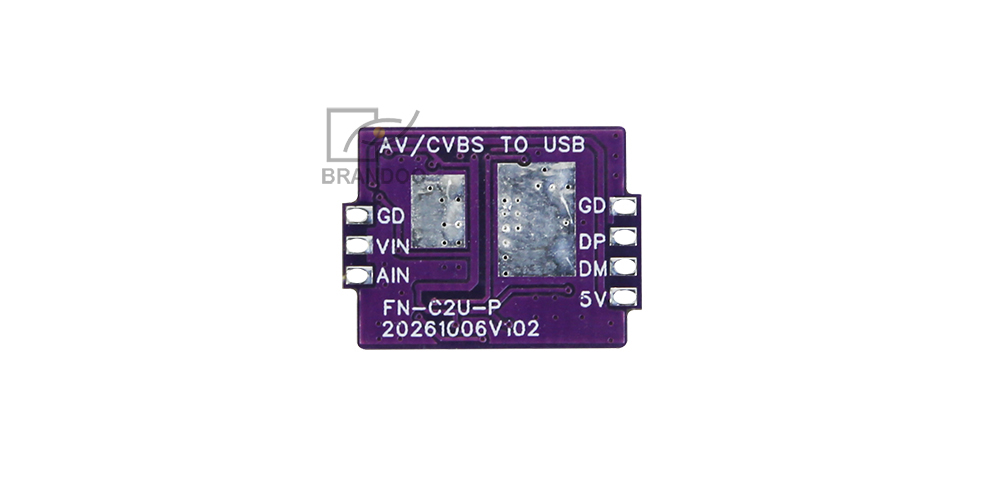

| Input port | 2.0*4 pins terminals |
| Input signal | AV/CVBS/S-Video |
| Video Mode | PAL/NTSC |
| Output | USB/Type-C |
| Video output format | MJPEG, YUV422 |
| Video output resolution | MJPEC: 1920*1080 ( 30fps)、1280*720(60fps)、800*600、720*576、720*480、640*480、480*320、320*240 |
| YUY2:720*576（25fps)、720*480 (30fps)、640*480、480*320、320*240 | |
| Audio Output | 48KHZ Stero |
| AV Protocal | Standard UVC/UAC |
| Driver | Free Deriver |
| OS | Windows/Linux/Android/MAC |

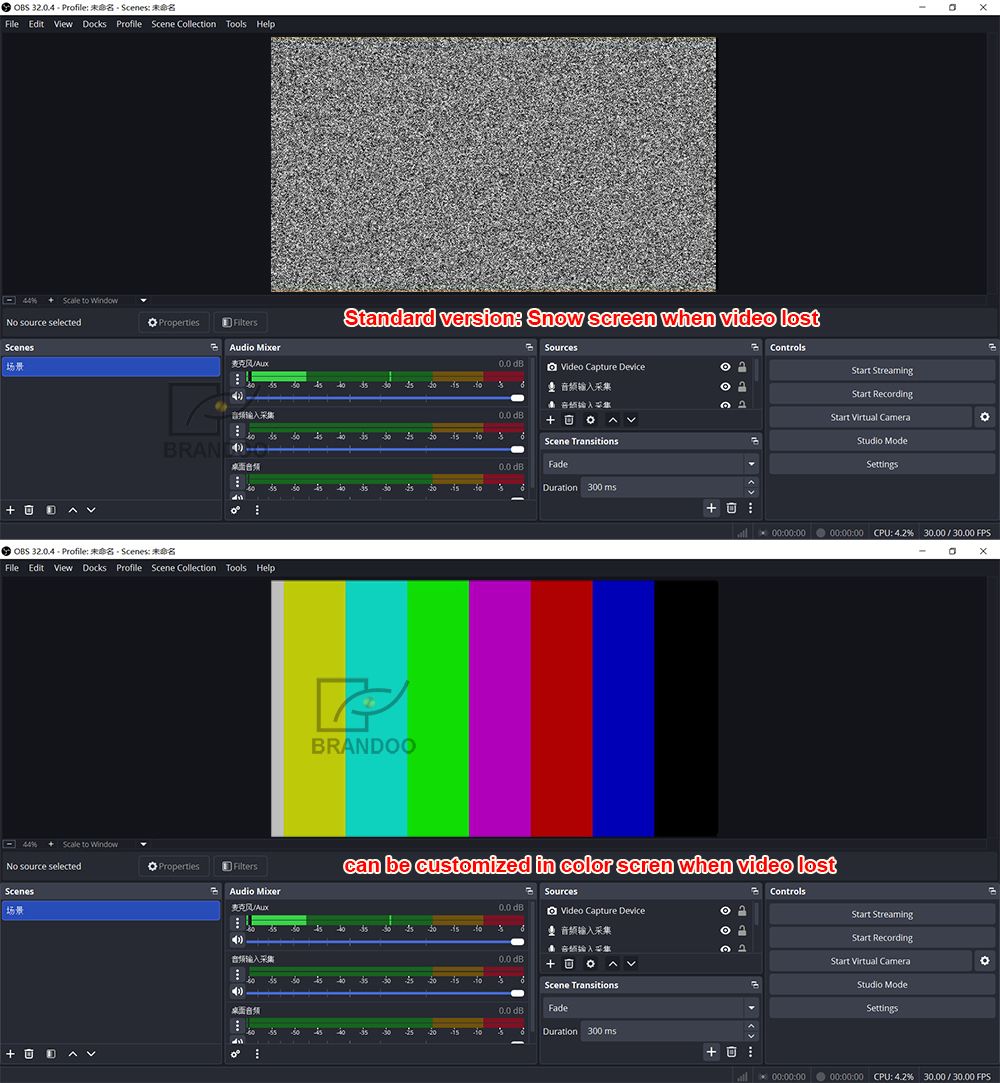

| Capture software | OBS/PotPlayer |
| Consumption | <1Wat |

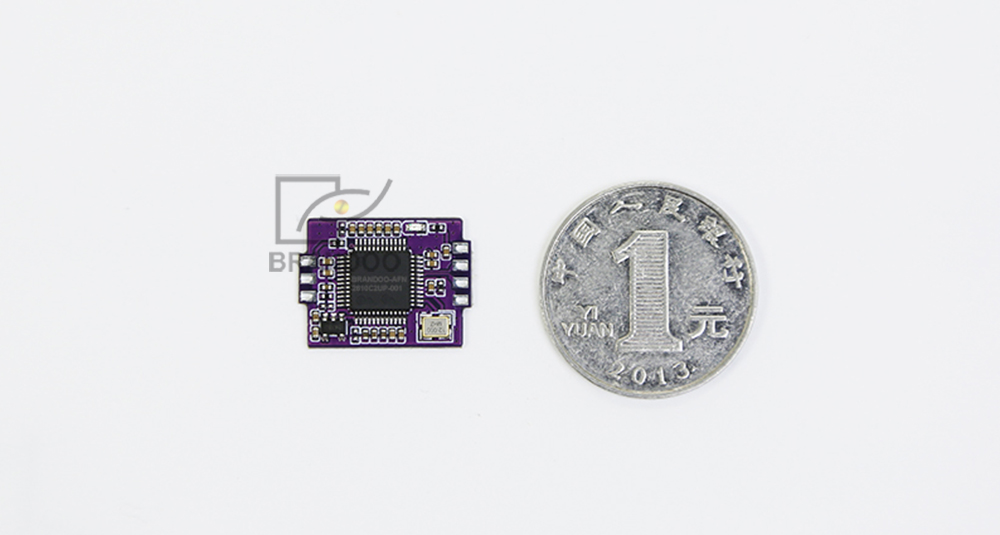

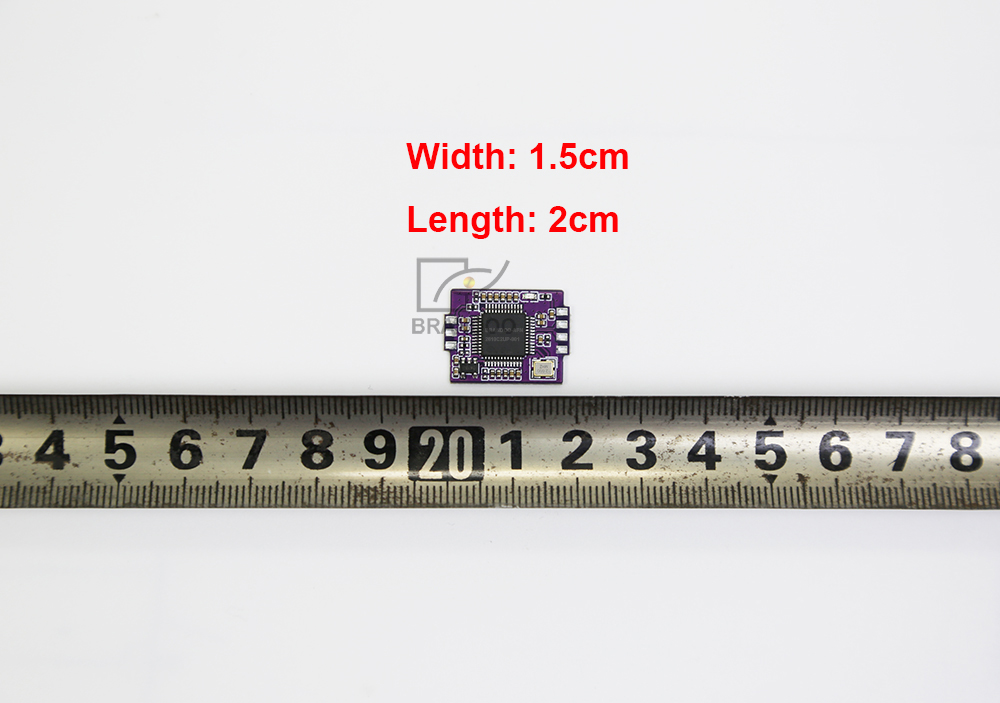

| Dimension | 2x1.5cm |
| Weight | 0.9g |
