HD to USB capture Card

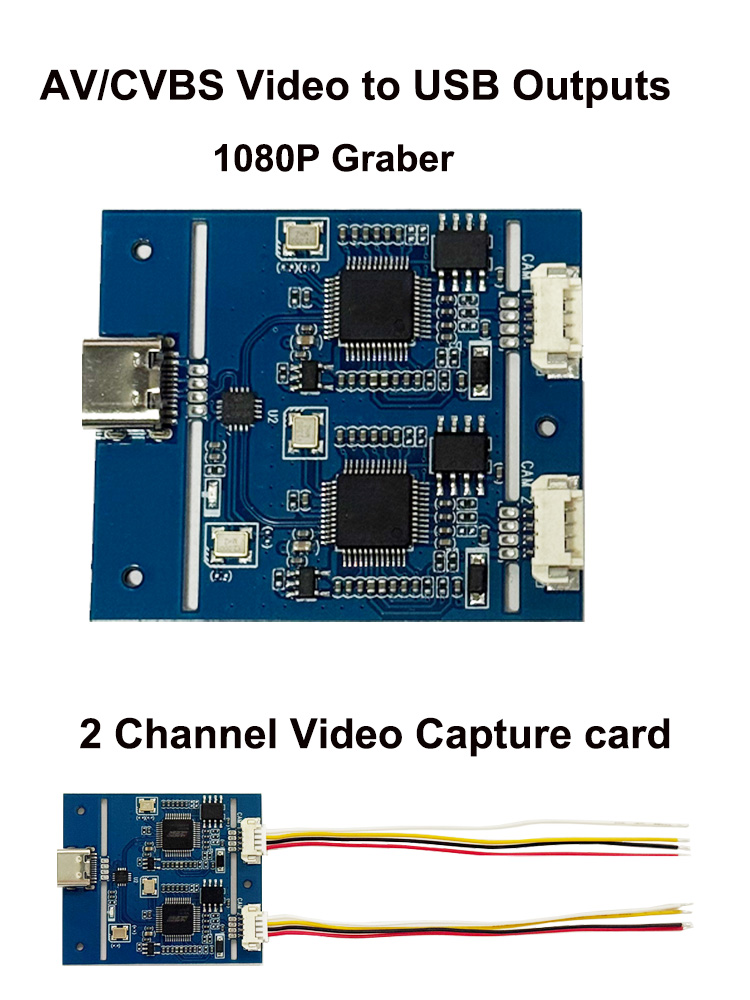

2 Inputs CVBS to USB Graber Video capture Model C2U2
It's a high quality 1080P graber which support 2 channel AV/CVBS video to USB outputs. video and audio sync. input. It display 2 channel video on capture software,it's available to shift full screen of each channel (depends on capture software).
- Details
Features:

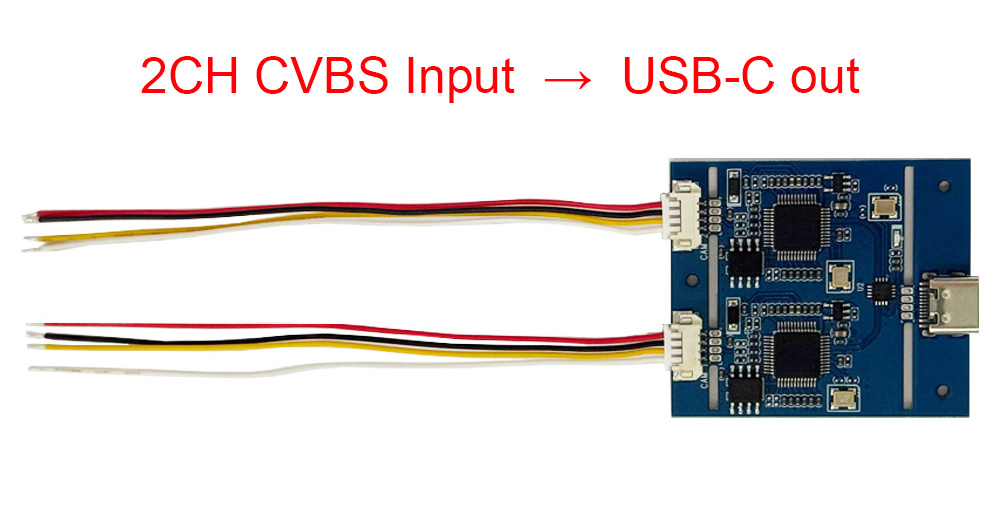

> 2 channel CVBS video input
> 1 USB-C video output
> PAL/NTSC support
> Output format MJPEG
> UVC/UAC standard
Spec. :
Standard: UVC/UAC protocal
OS: Windows/linux/andriod/macosInput signal: AV/CVBS, PAL/NTSC mode

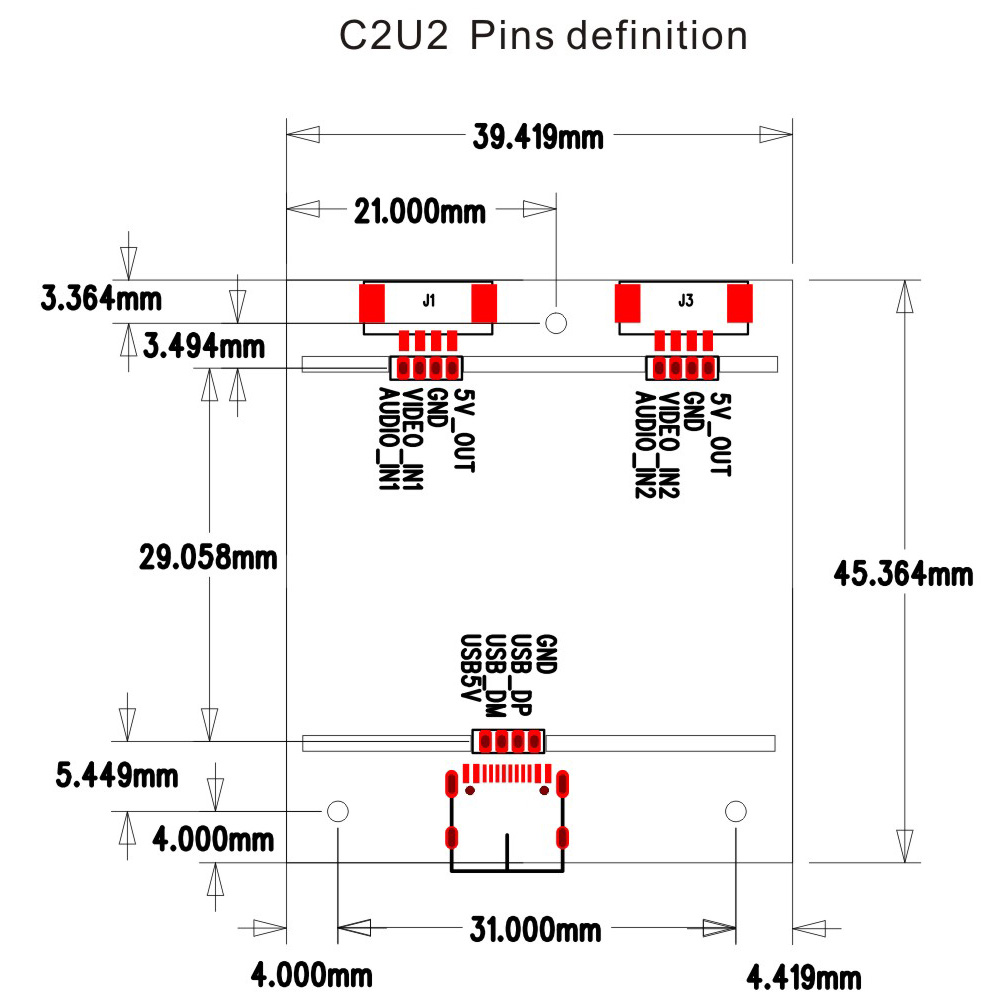

Input port: 1.25mm 4pins *2
Output port: USB-C
Output format: MJPEG
Video resolution:1920*1080(30fps),1280*720(60fps),800*600,720*576720*480,640*480,480*320,320*240
Audio output: 48khz stero
Driver free: Yes

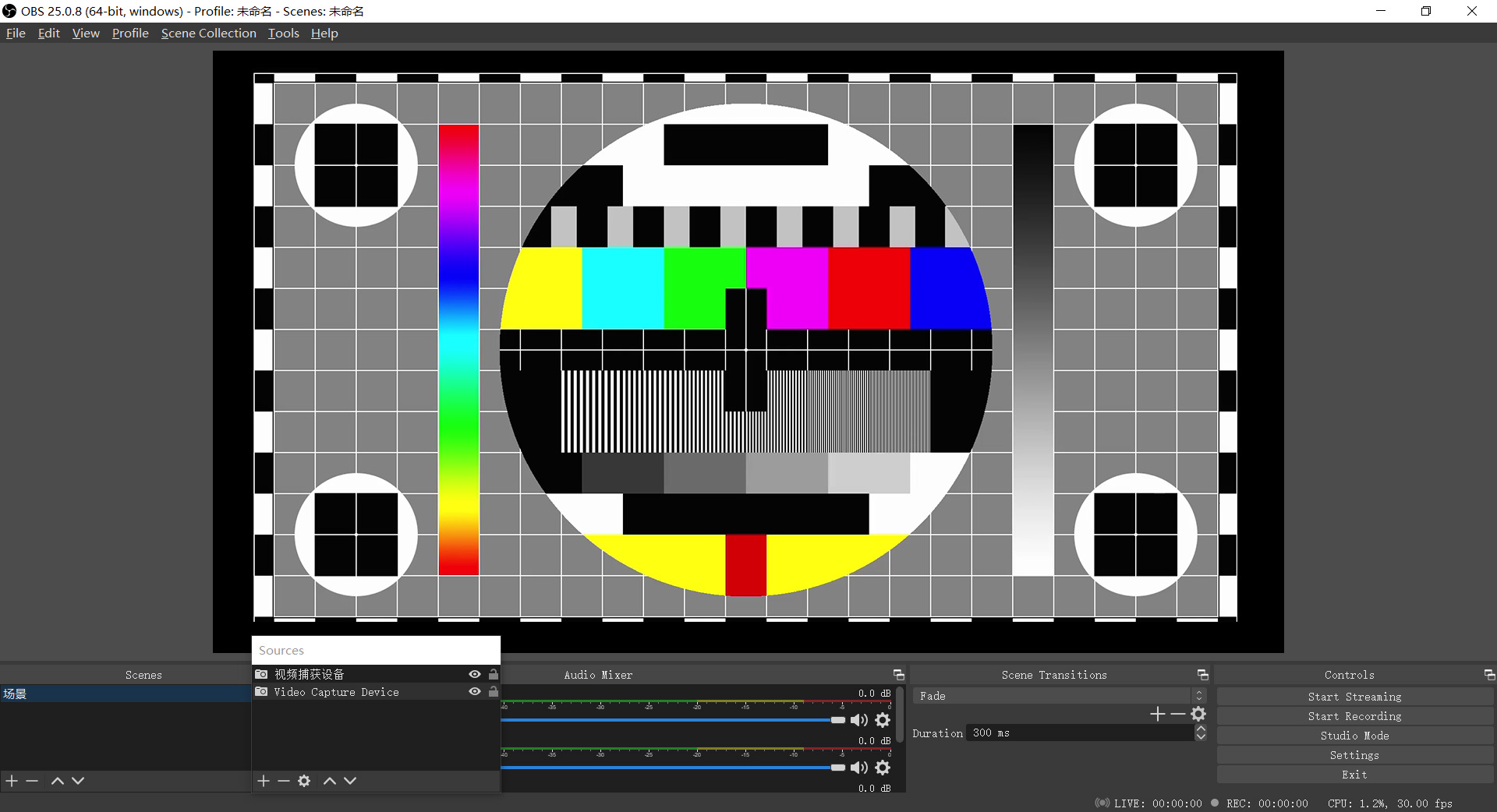

Recommended software: OBS,AMCAP,POTPLAYER
Consumption:<3wat

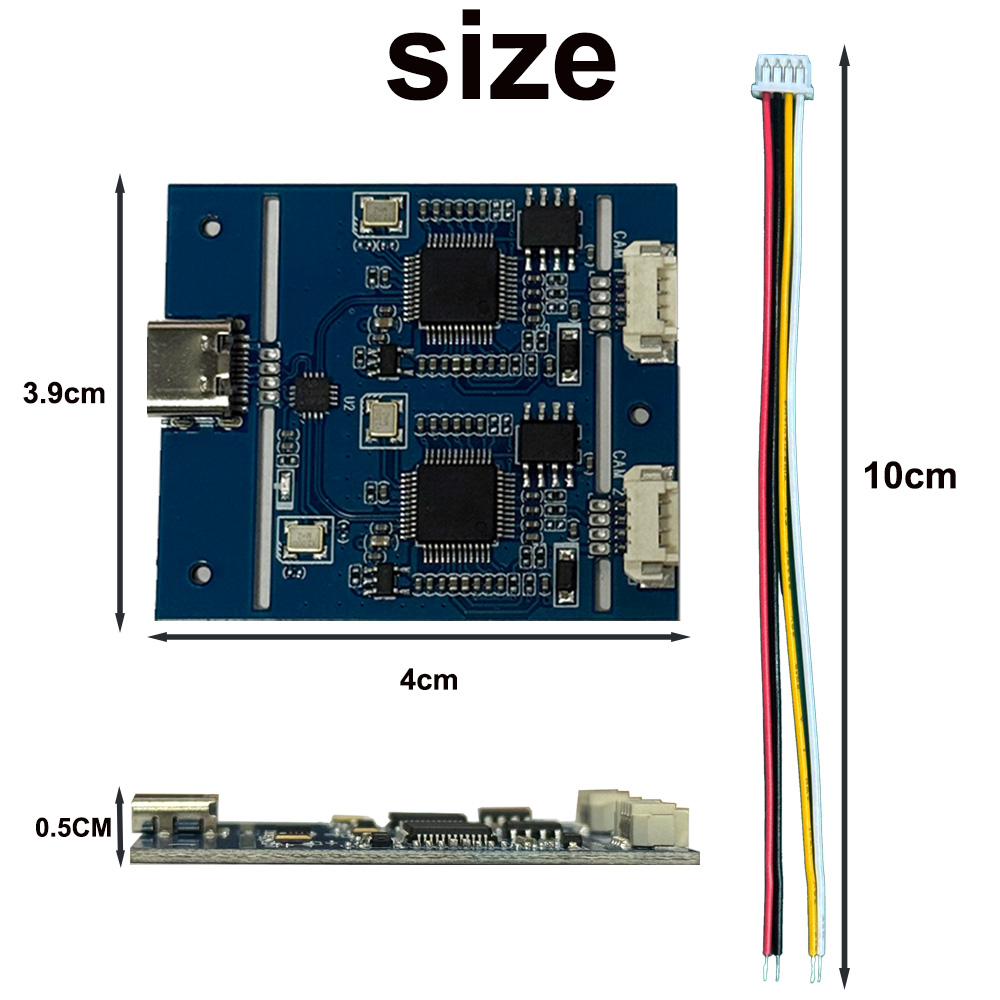

Dimension: 45.5*35.5mm
N.W.:15g
