AI 360 8CH Vehicle Panorama Video system ADAS DMS BSD 4G GPS WIFI MDVR H8PRO

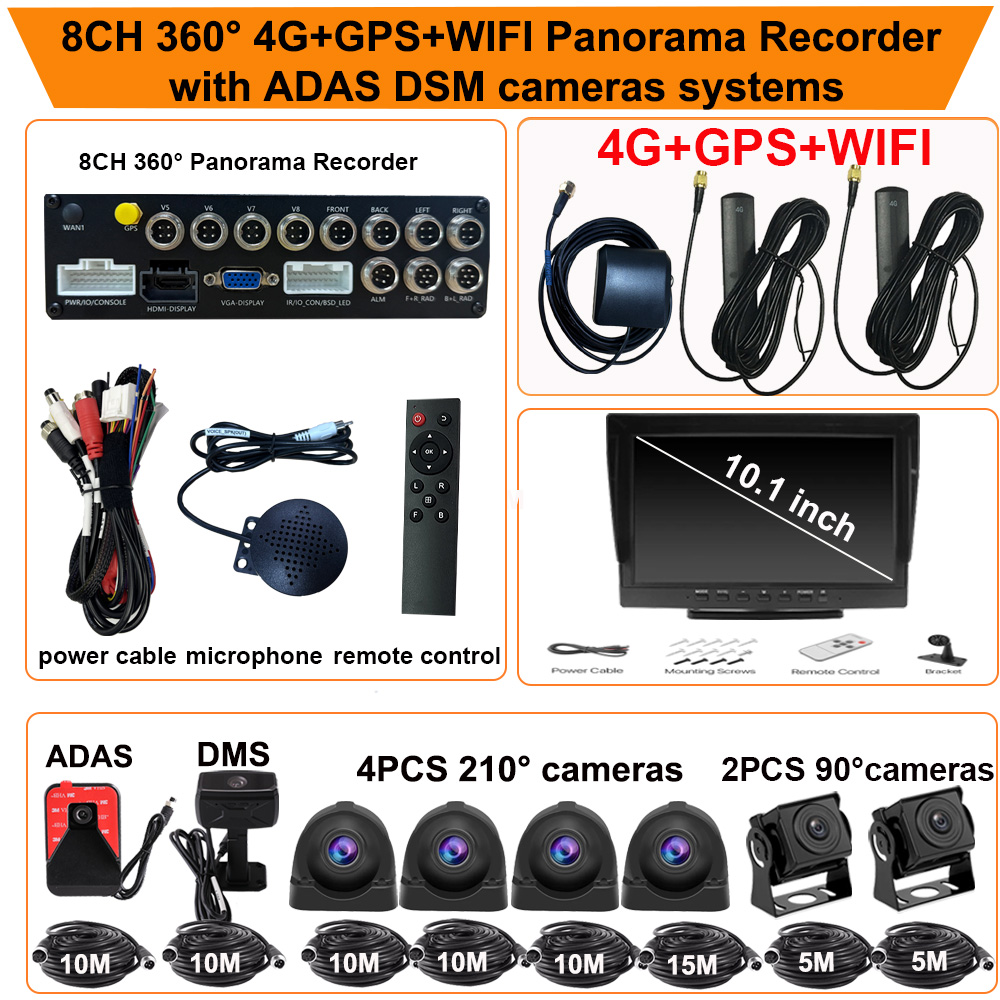

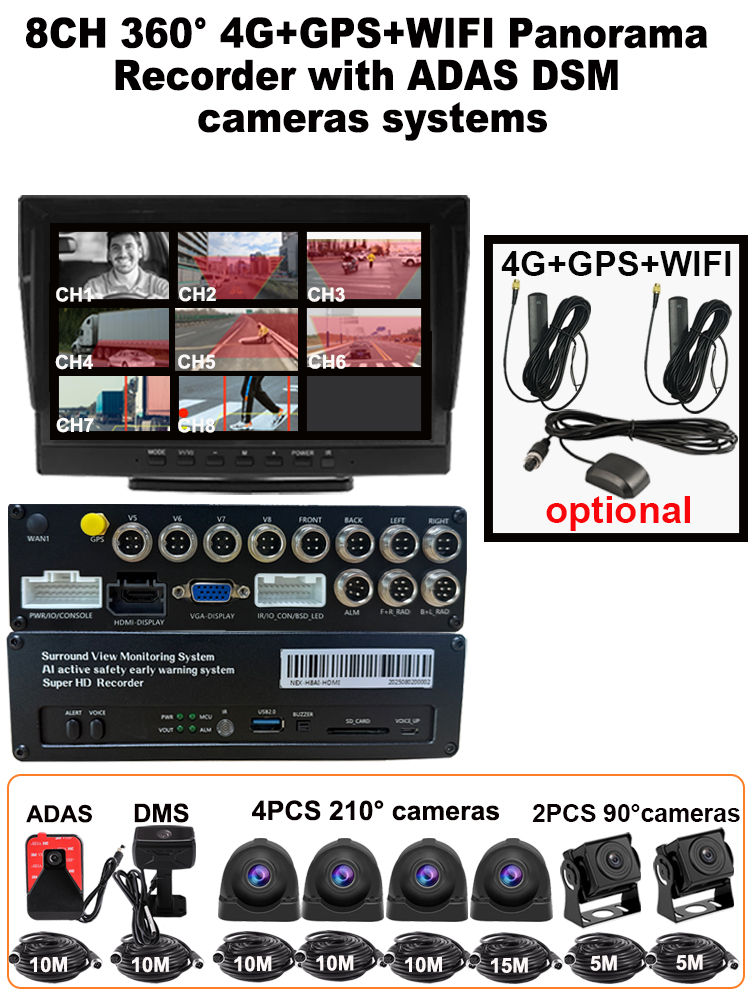

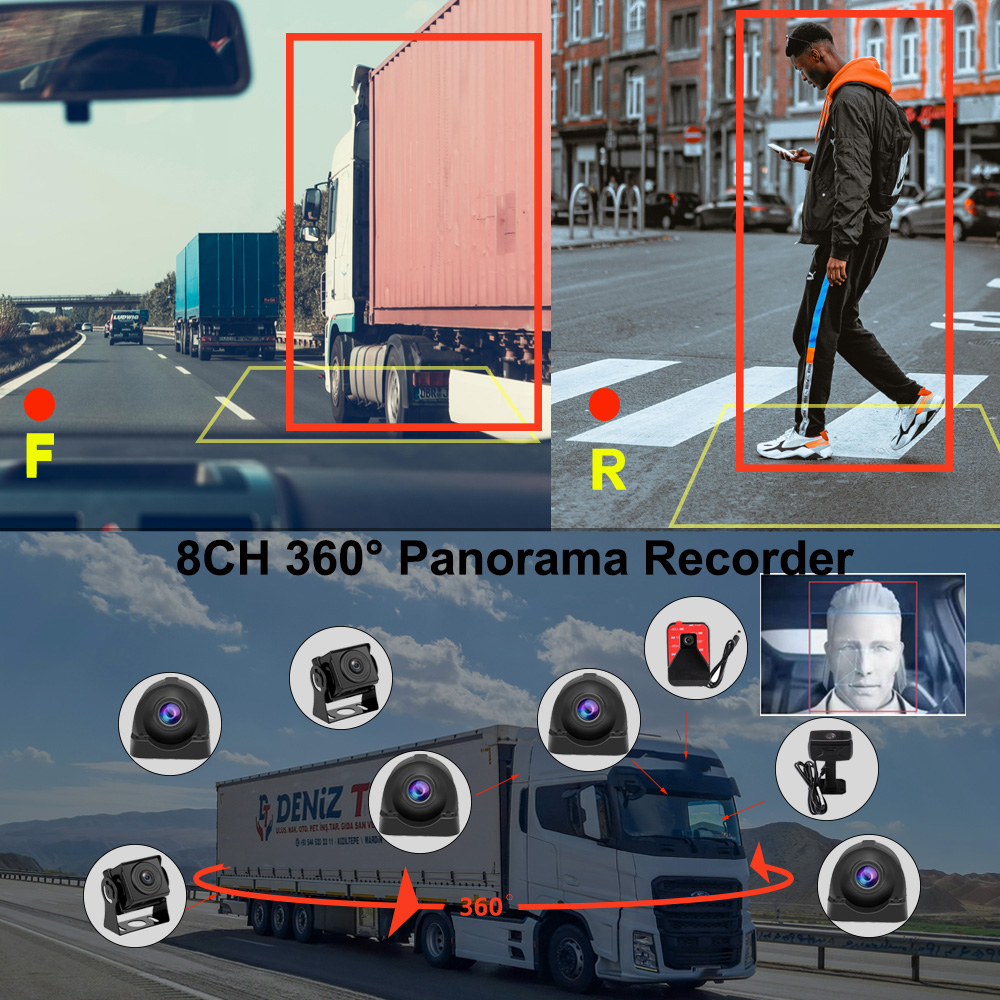

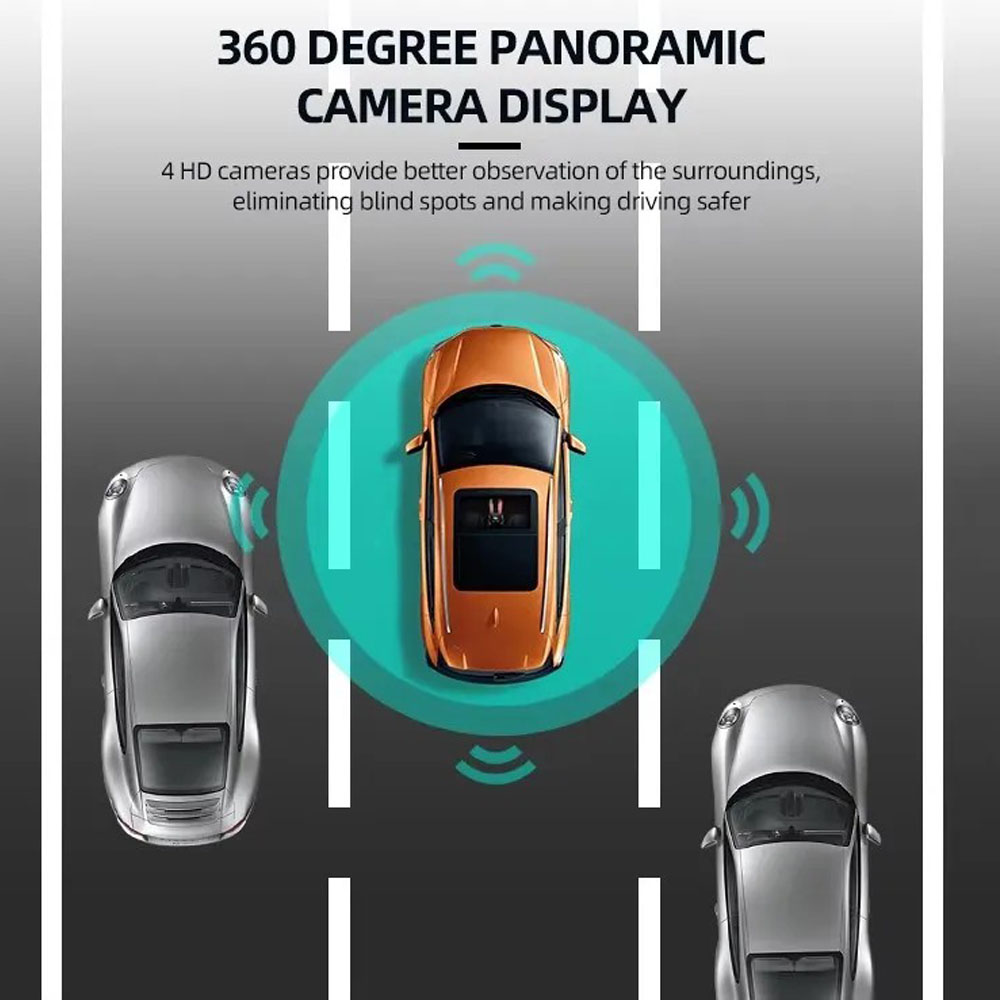

This is a 8CH 360 Panorama MDVR system for Vehicle. There 4 cameras for Panorama view, and 4 cameras for normal video recording.
  • Details

Features:

> 4CH panorama + 4CH Regular video

> AI optional, ADAS, DMS, BSD

> 4G GPS WIFI OPTIONAL

> Internal HDD memory or SD card recording


2 version panorama camera can be choosed

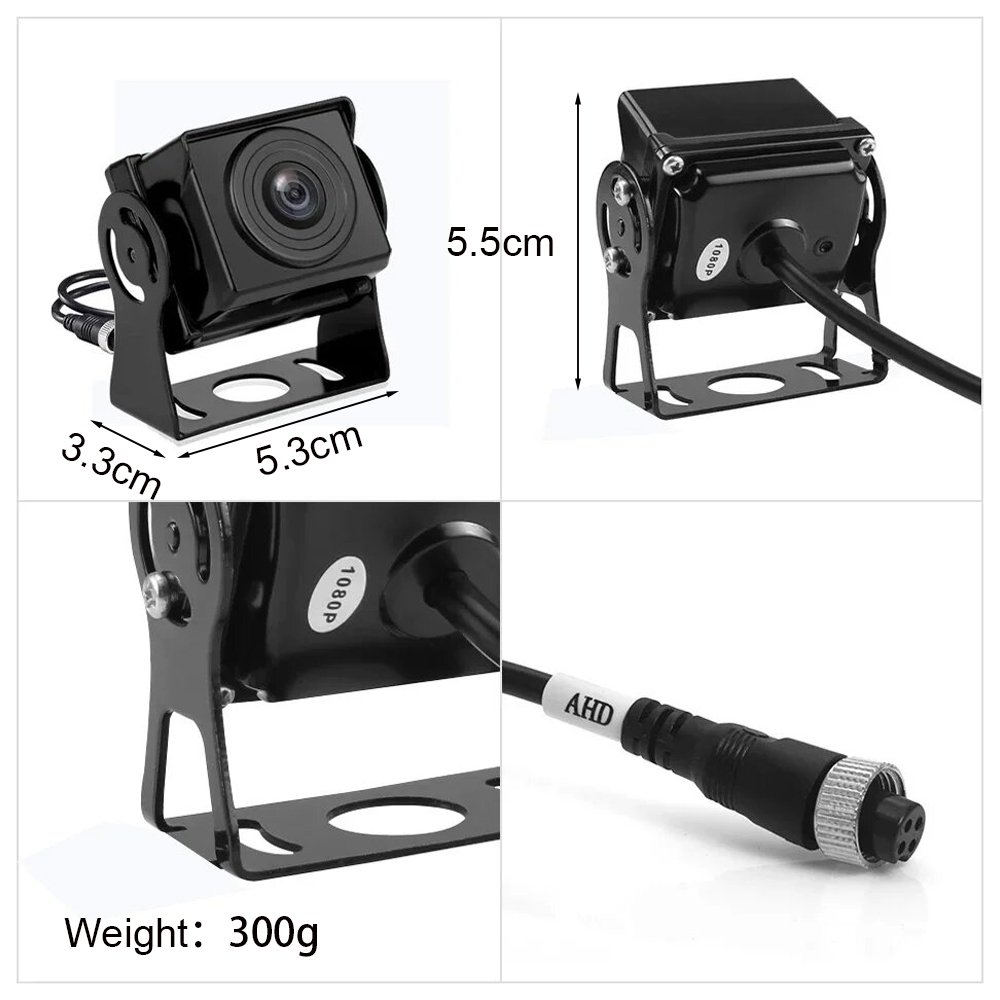

Square type

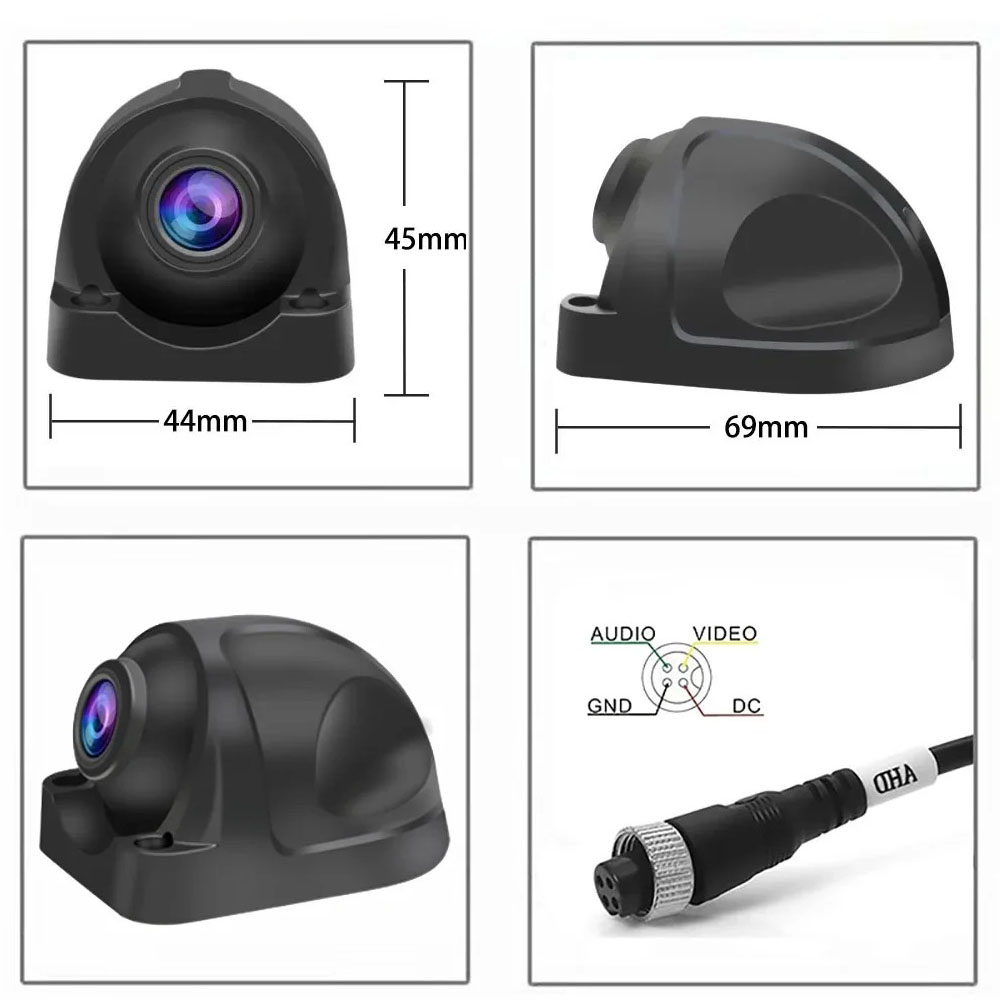

Mouse type

4G/GPS/WIFI function optional, these function and Monitor need to pay extra.




AI function optional

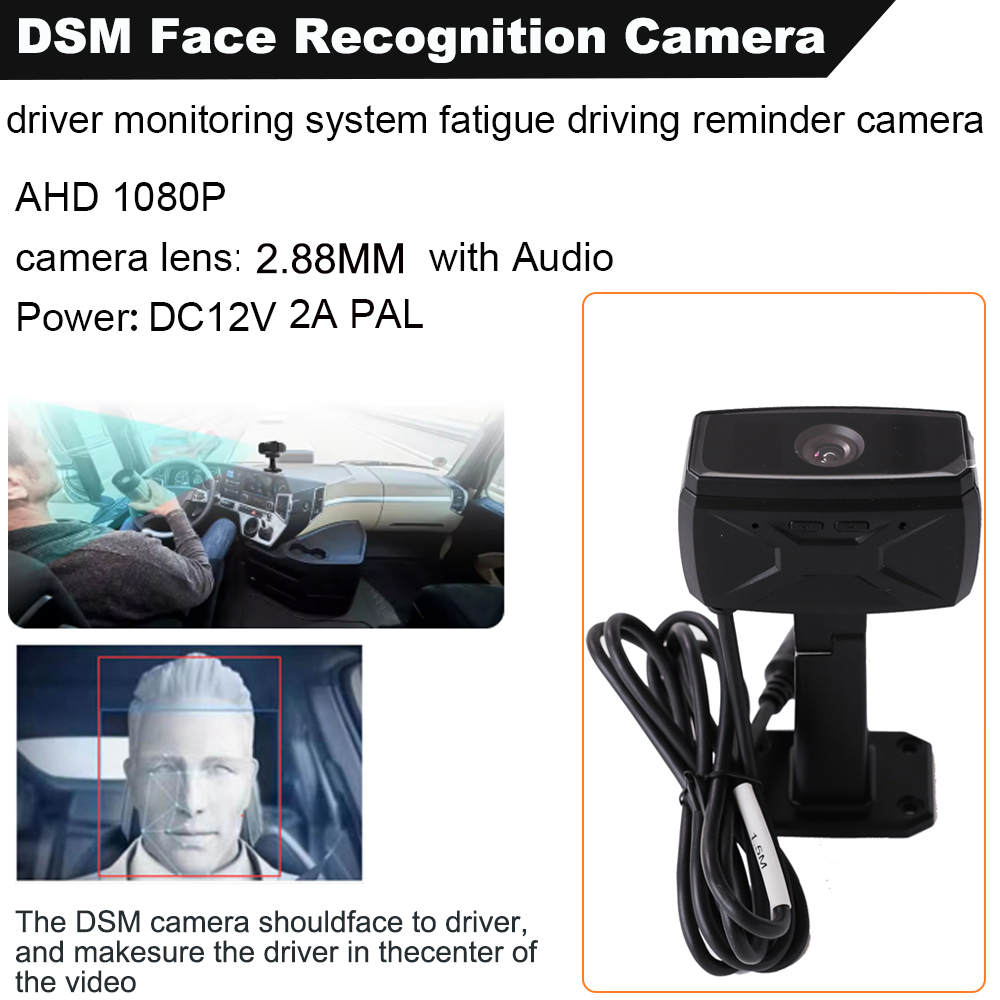

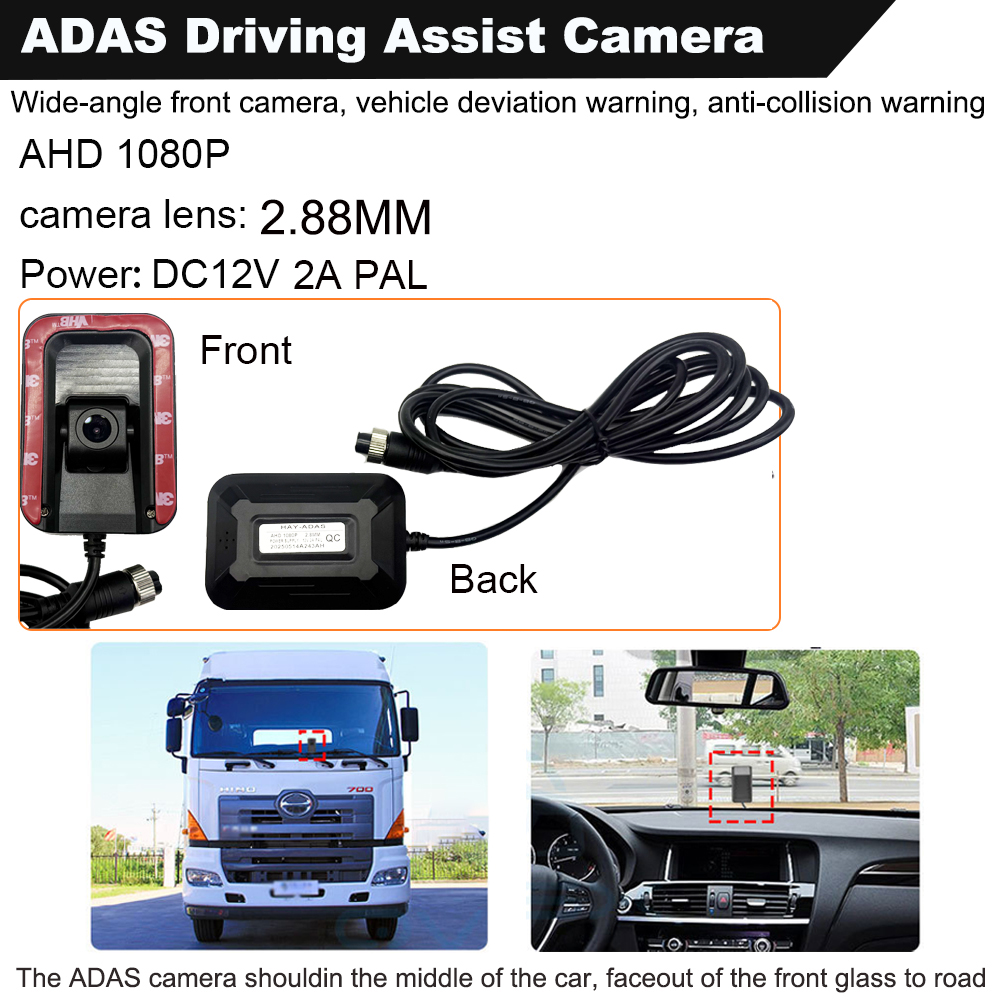

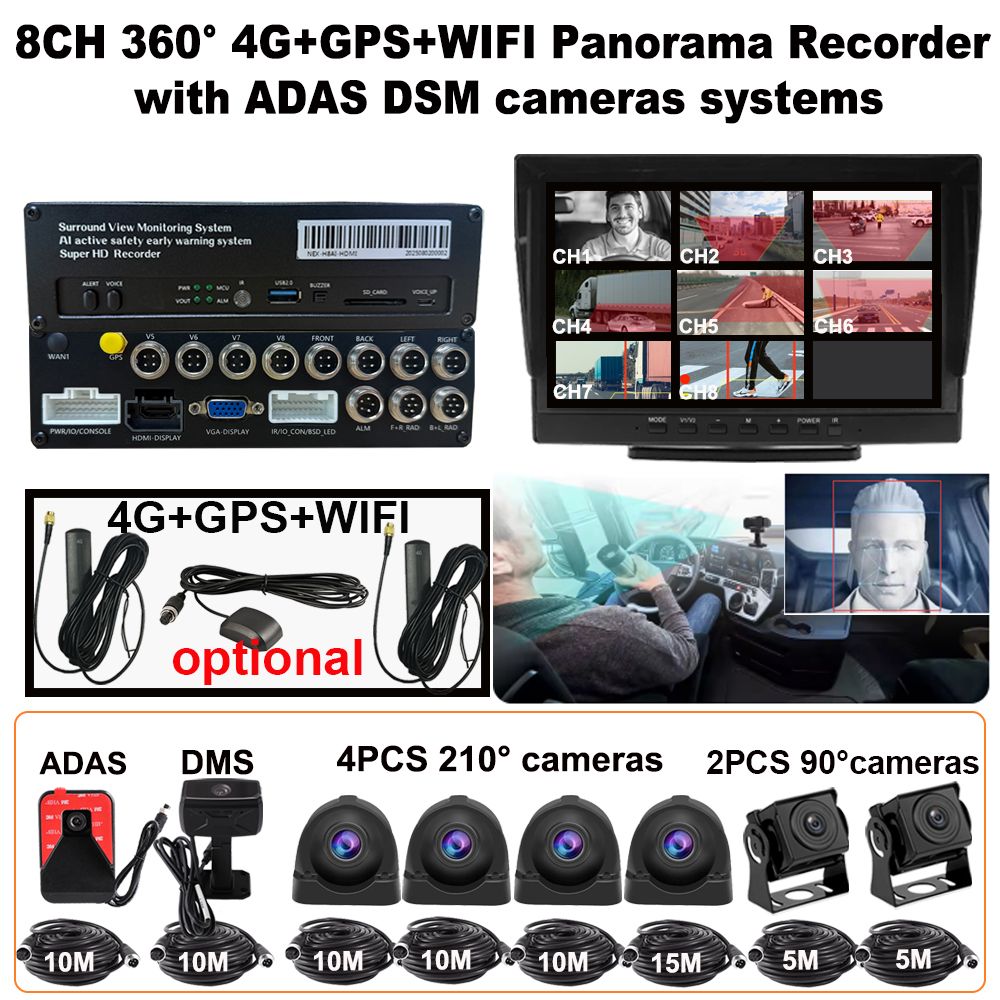

ADAS DMS BSD cameras


We can make complete solution for different vehicles


Specifications

Item

Data

Power

Consumption

10-30W, working voltage DC12-36V。

Protection

Anti-surge function, anti-reverse connection function, low power protection and short circuit overload protection.

Video output

AHD out (Optional)

It's an optional function, 2 channel AHD 720P/1080P output.

CVBS out

Aviation connector, PAL/NTSC supported.

VGA Out

Support

HDMI out

Support

Video input

AHD input

4CH/8CH 1080P AHD input

AI Function

Blind area alarm

Built-in AI vision algorithm supports 360-degree blind spot detection function for the entire vehicle

CAN(optional)

CAN communication

High-speed CAN bus transceiver, compliant with ISO11898 standard, low power consumption management, wake-on-network function.

Memory

2.5" HDD (build in)

128GB-2TB SATA HDD

SD card

8-512GB standard SD card

Recording

File format

H265

Resolution

4ch combined video 1920*1080P

Memory cost

1.25GB/hour
