360 Panorama System for bus truck cctv support AI BSD Model H3PRO

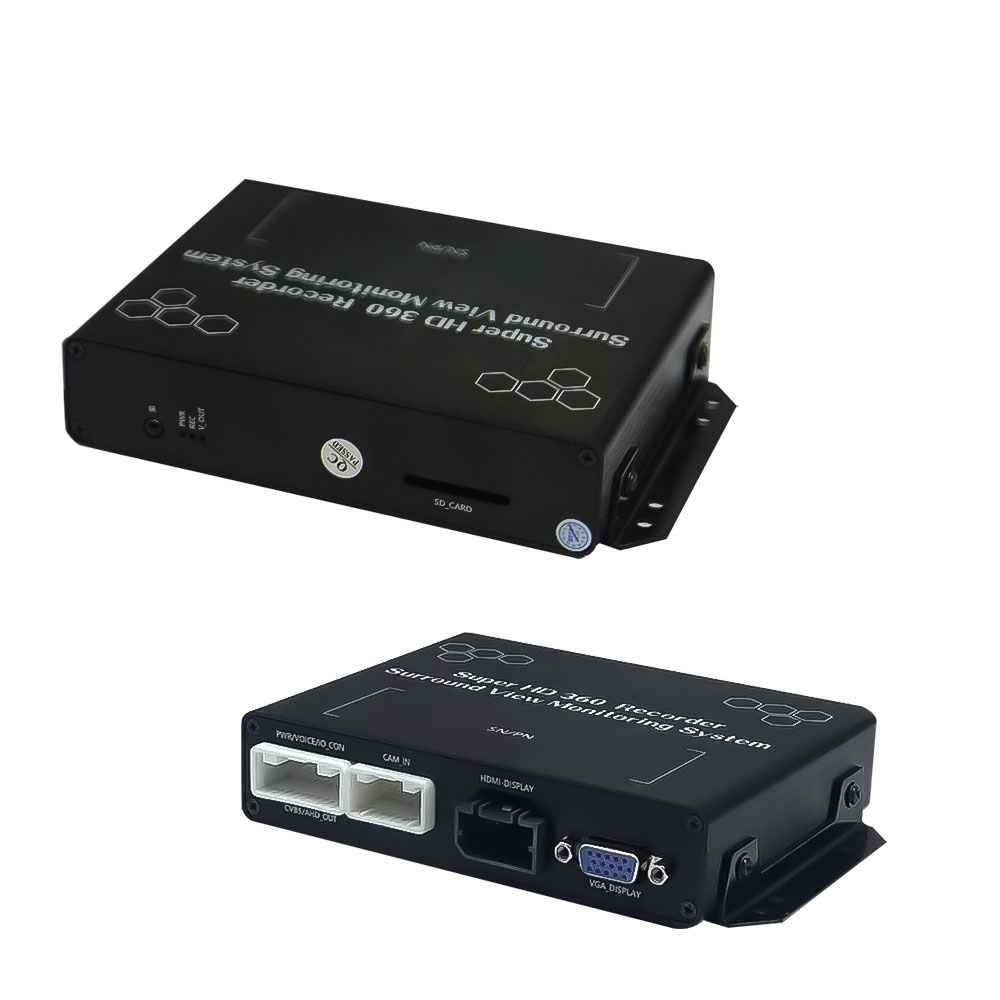

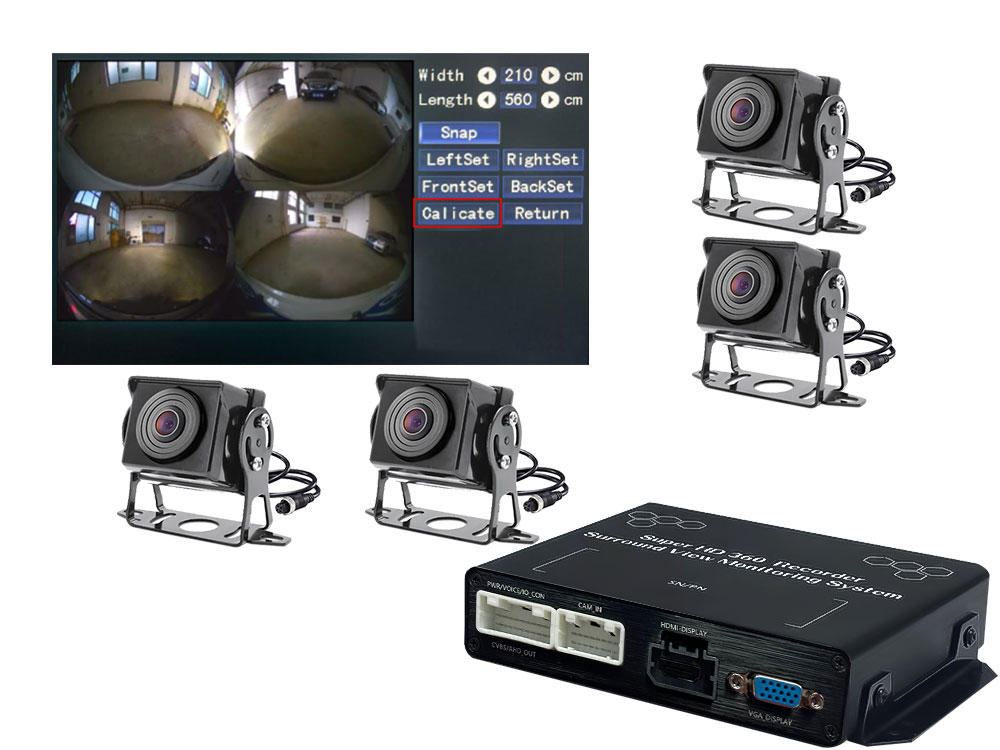

it's a inexpensive vehicle 360 degree panorama video system with build in recorder. It works with 4pcs HD cameras and build up a panorama view by software. The extra special function including ADAS,BSD,DMS.
  • Details

Features:

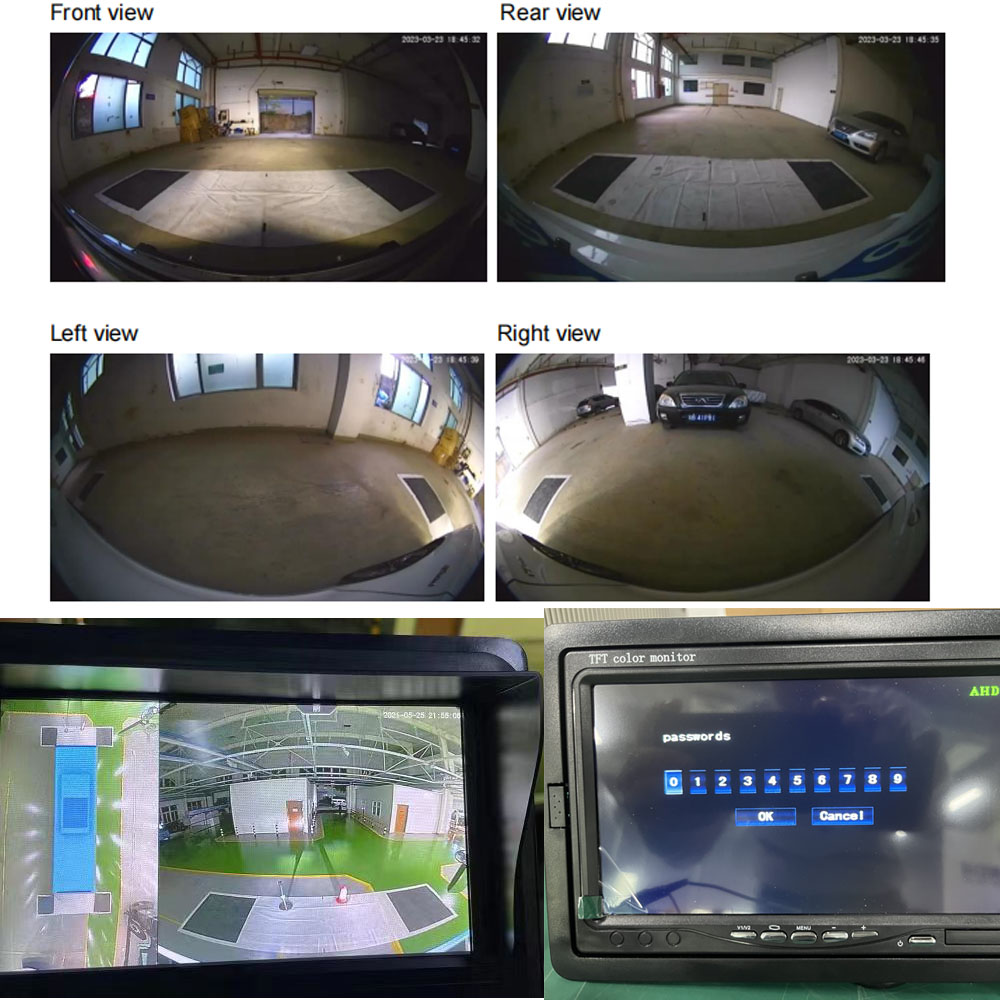

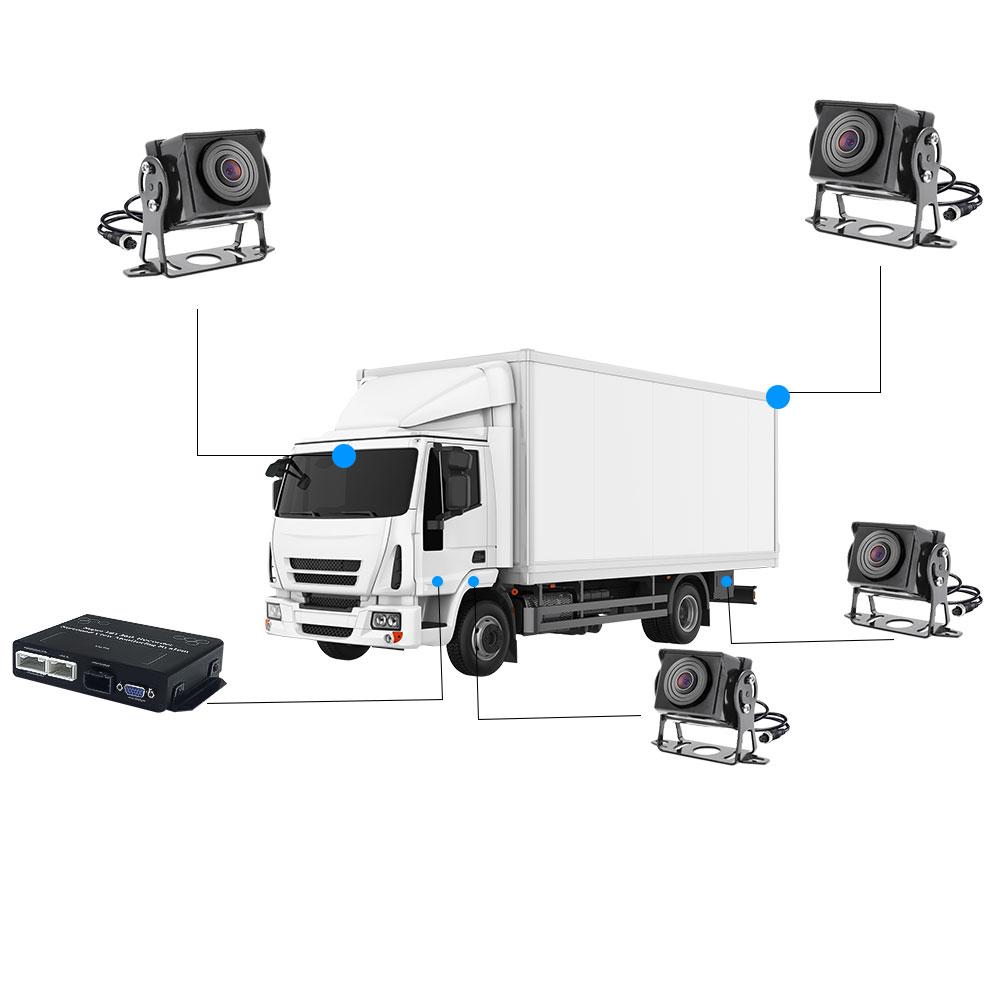

1. 360-degree panoramic images specially developed for trucks and special vehicles, with its own 360-degree splicing algorithm for large trucks, small size, highly integrated.

2. ISO-7637 standards. Support DC12-36V, an anti-reverse connection design, build-in capacitor.

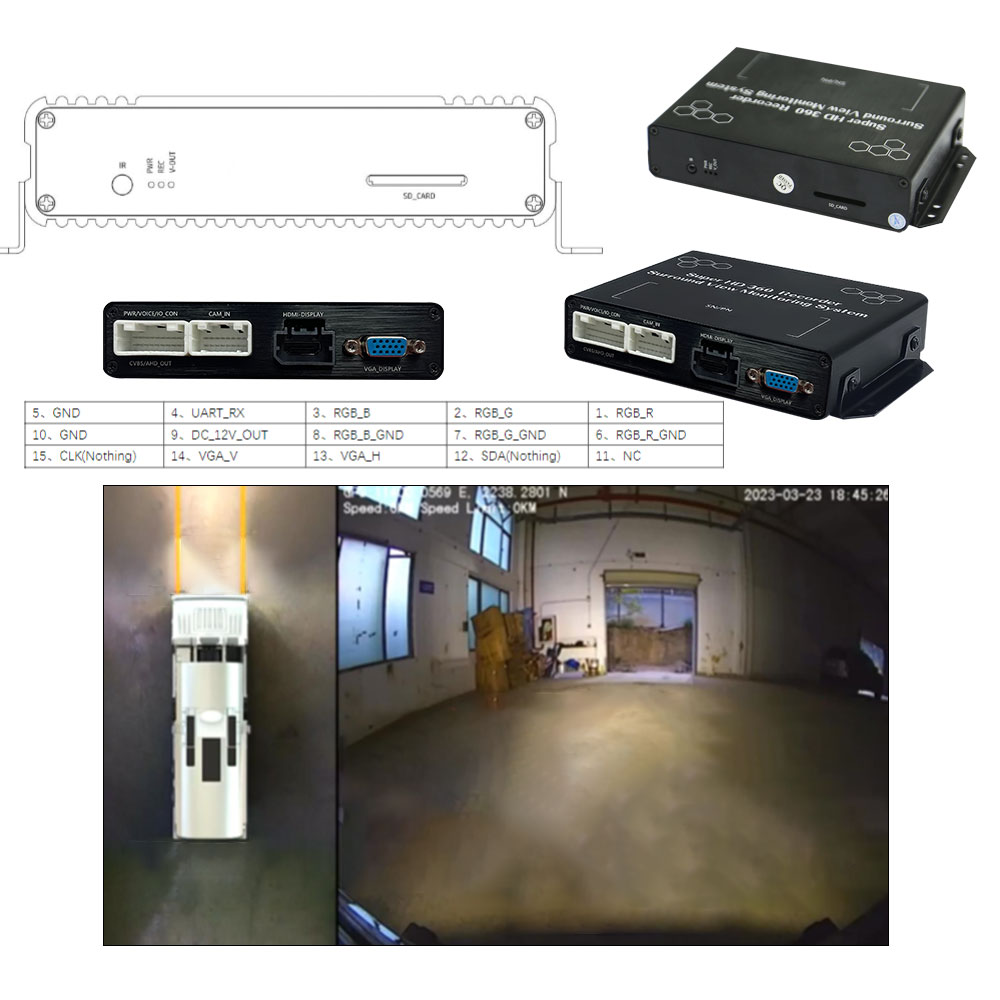

3. Video output support CVBS/VGA or AHD. HDMI is customized for matched monitor.

4. 4CH/8CH 1080P AHD Camera input.

5. Supports the AI vision algorithm for 4-way blind spot detection, BSD alarm with sound.

6. The product supports CAN communication function, supports original car data and 360-degree panoramic host communication, and realizes IO control, touch, steering wheel angle, vehicle speed, radar and other original car information.

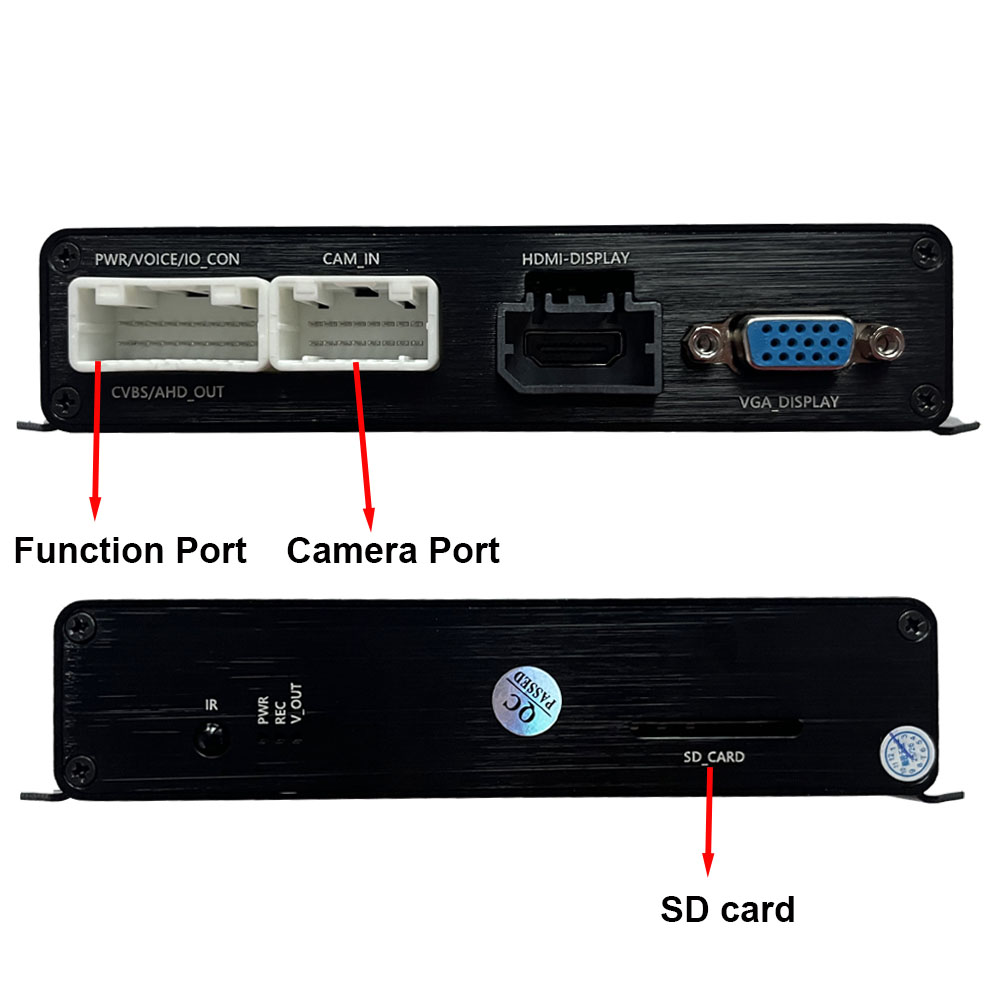

7. SD or HDD memory for saving recordings.



Specifications

Item

Data

Power

Consumption

10-30W, working voltage DC12-36V。

Protection

Anti-surge function, anti-reverse connection function, low power protection and short circuit overload protection.

Video output

AHD out (Optional)

It's an optional function, 2 channel AHD 720P/1080P output.

CVBS out

Aviation connector, PAL/NTSC supported.

VGA Out

Support

HDMI out

Support

Video input

AHD input

4CH/8CH 1080P AHD input

AI Function

Blind area alarm

Built-in AI vision algorithm supports 360-degree blind spot detection function for the entire vehicle

CAN

CAN communication

High-speed CAN bus transceiver, compliant with ISO11898 standard, low power consumption management, wake-on-network function.

Memory

2.5" HDD

128GB-2TB SATA HDD

SD card

8-512GB standard SD card

Recording

File format

H265

Resolution

4ch combined video 1920*1080P

Memory cost

1.25GB/hour
