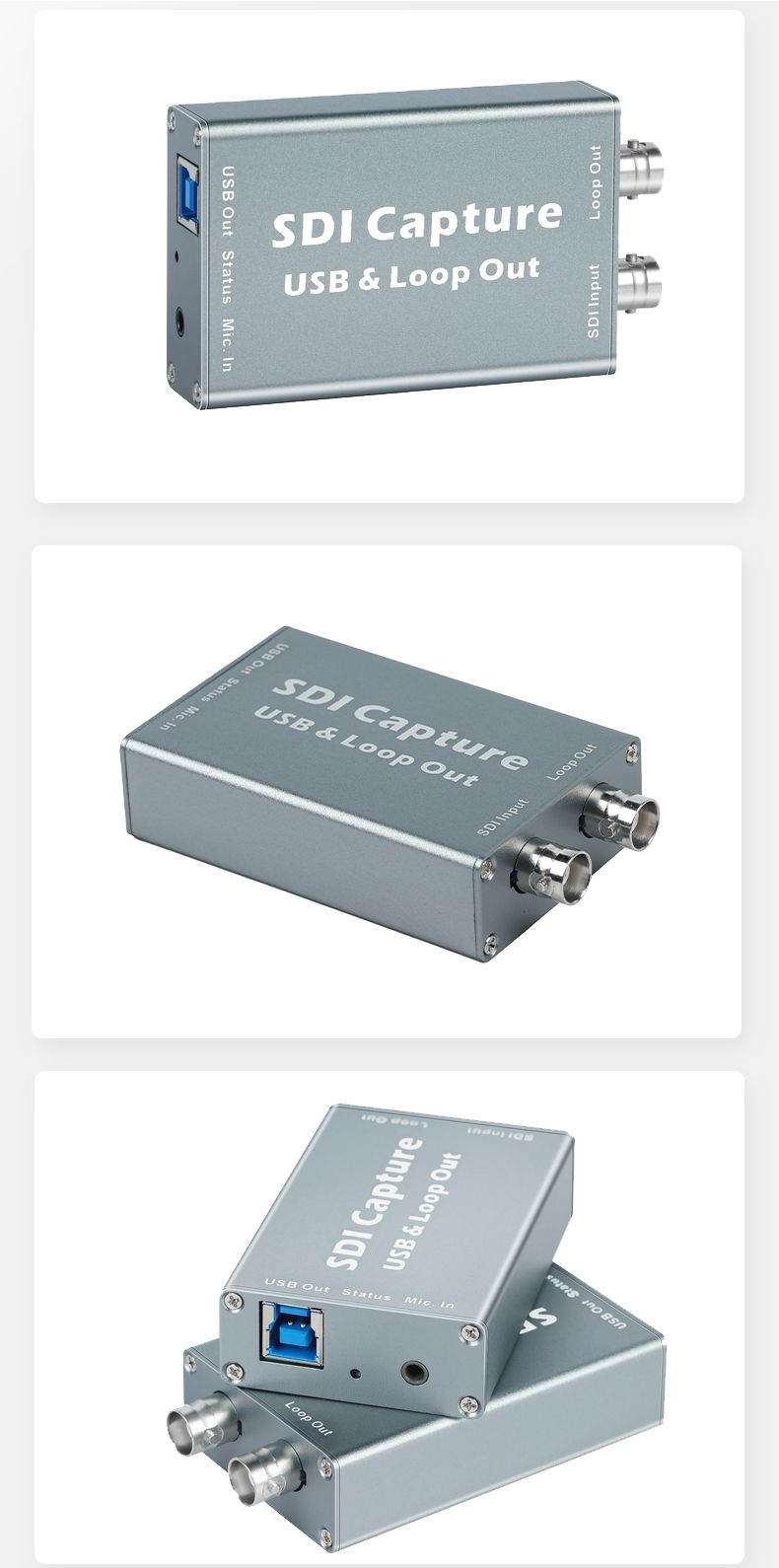

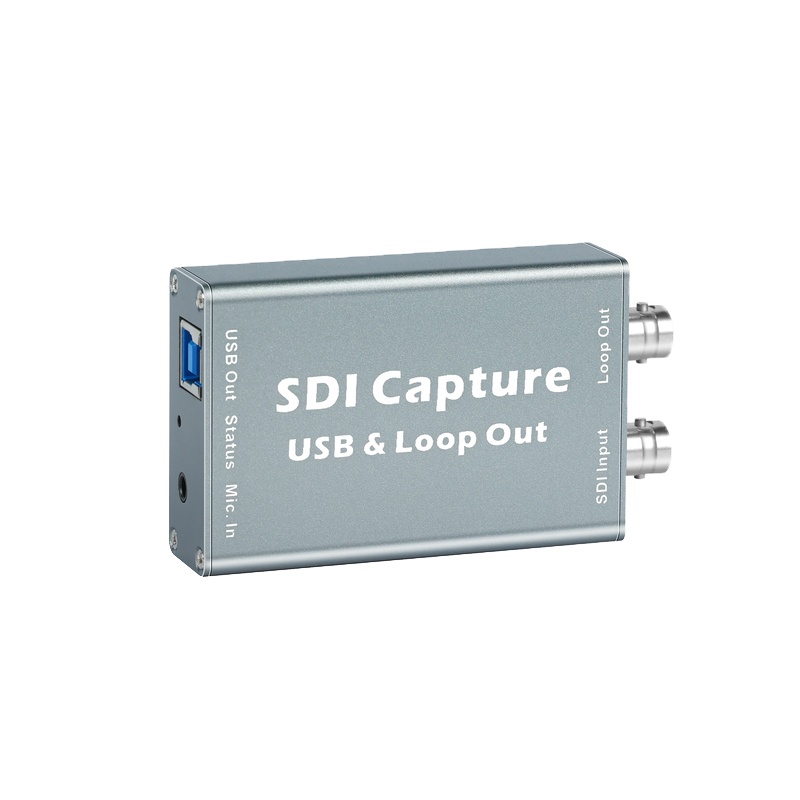

SDI to USB Video Capture Card S2U

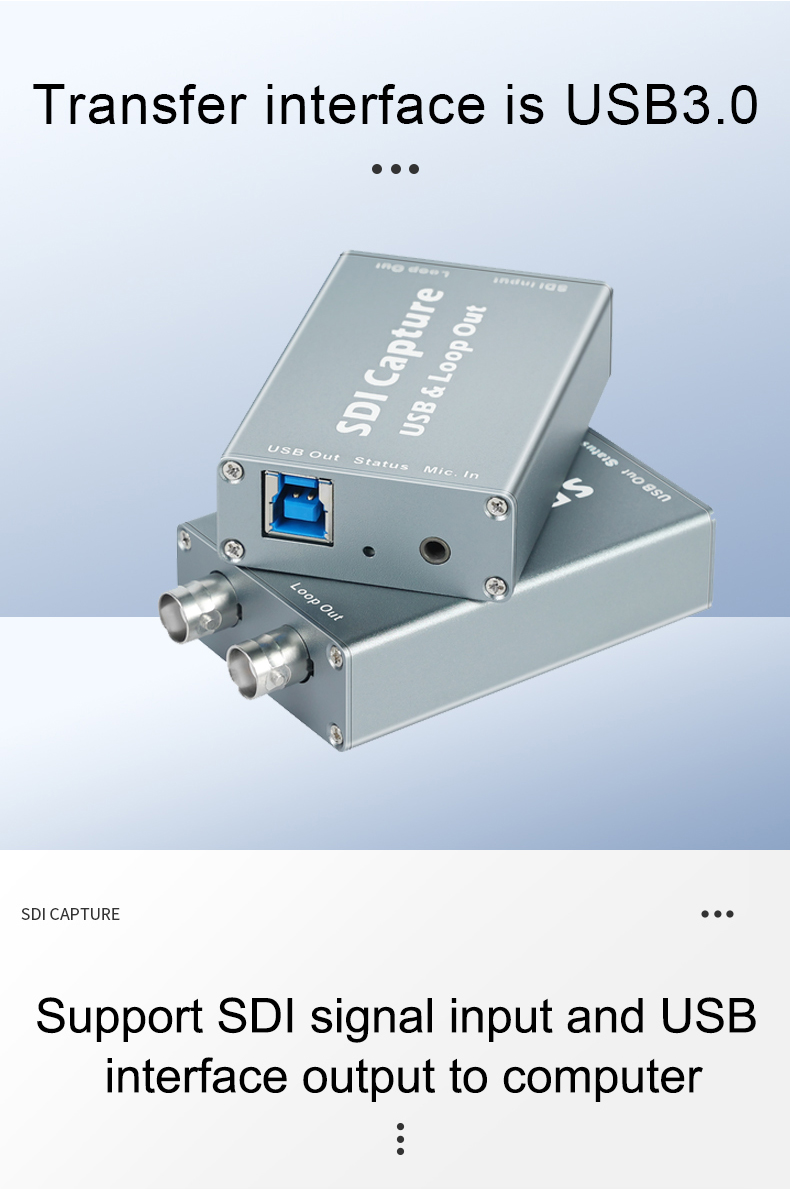

It is a capture card which support A/V SDI signal input and USB output to PC. It is a high cost effective capture card which matched UVC/UAC standard. The transmit port is USB 3.0. This capture card is compatible with Windows, Linux and Android system. It is a driver free HD AV capture tool.
  • Details

Features:

1. Resolution 1080P

2. Frame 5-60 fps adjustable

3. UVC/UAC standard

4. Driver free

5. Compatible with Windows, Linux and Android

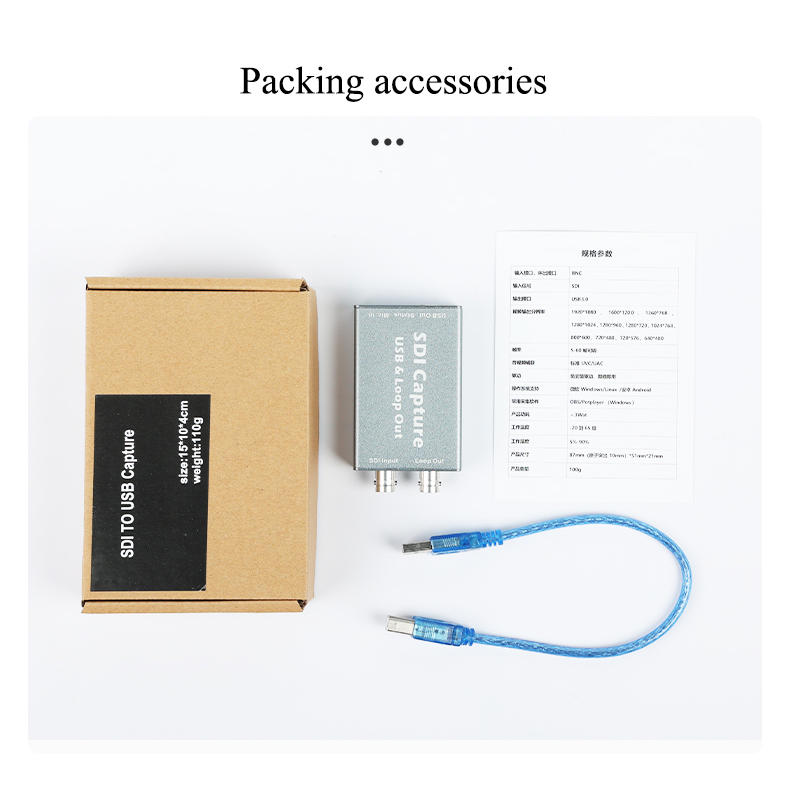

Packing list:

Capture card : 1 pcs

USB cable: 1pcs

Manual book: 1pcs


Specifications：

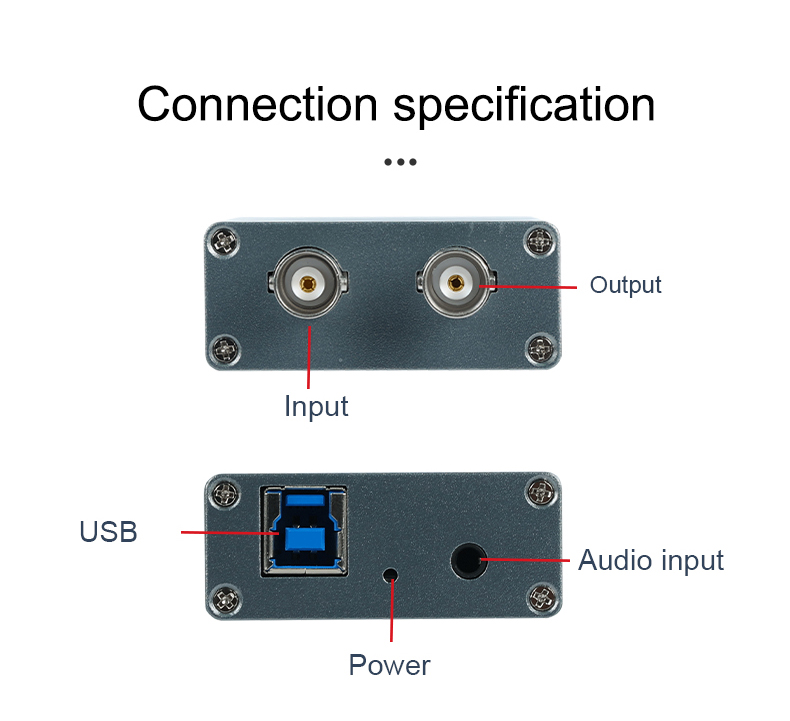

In/out put port

BNC

Input signal

SDI

Output port

USB3.0

Video out resolution

1920*1080、1600*1200、1360*768、1280*1024、1280*960、1280*720、1024*768、800*600、720*480、720*576、640*480

Frame

5-60 frame adjustable

A/V capture

Standard UVC/UAC

Driver

Driver free

Operation system

Windows/Linux / Android

Compatible software

OBS/Potplayer（Windows）

Consumption

＜3Wat

Working temp.

-20℃-65℃

Working Humd.

5%-90%

Dimension

97mm*51mm*21mm

Weight

100g
