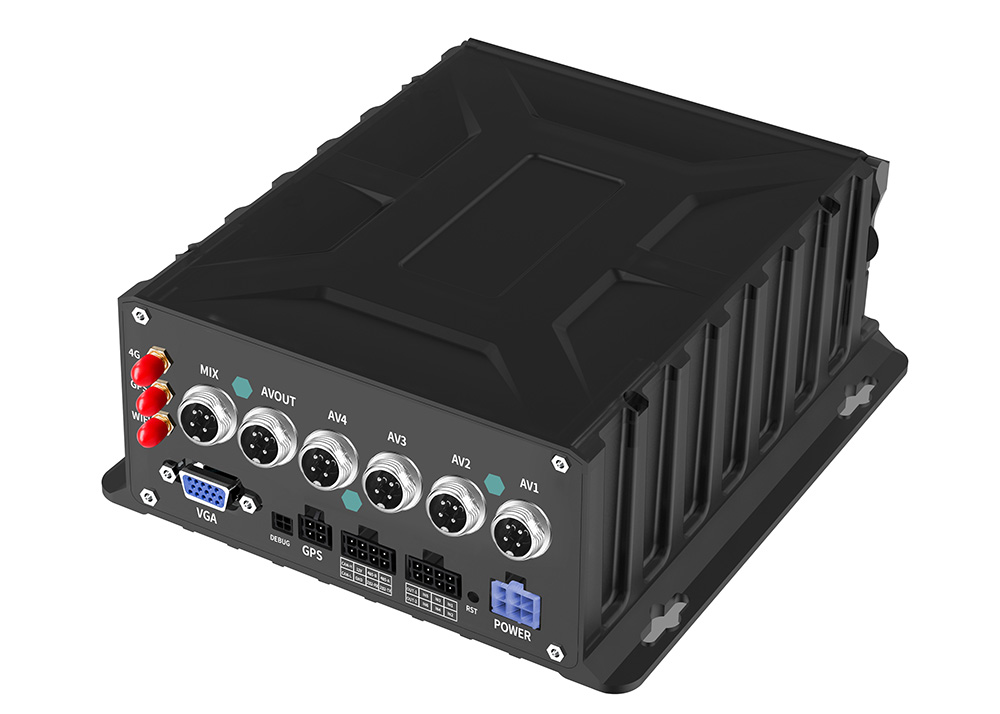

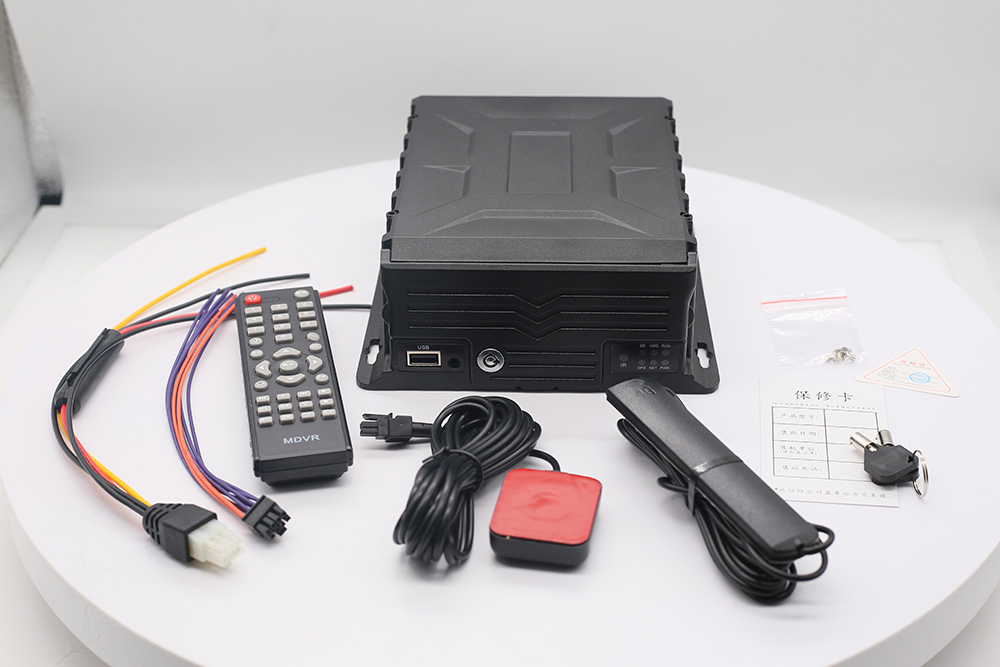

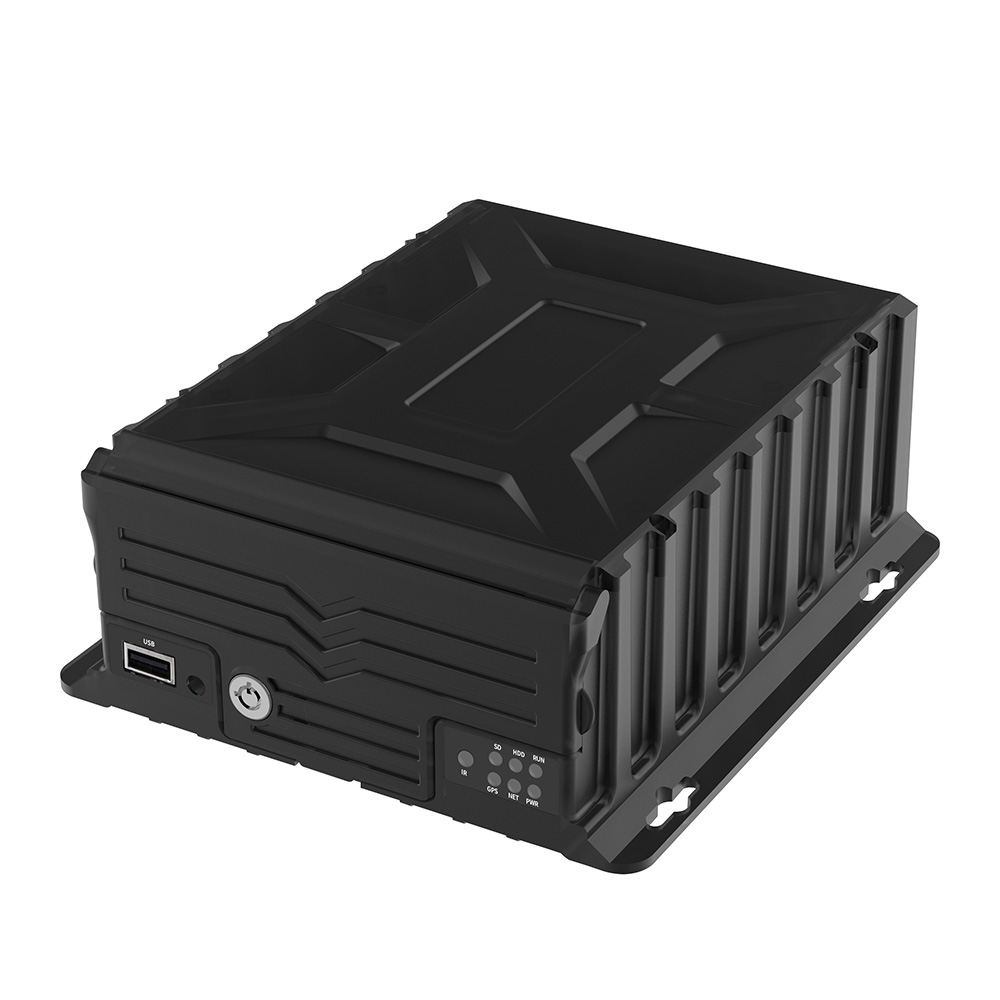

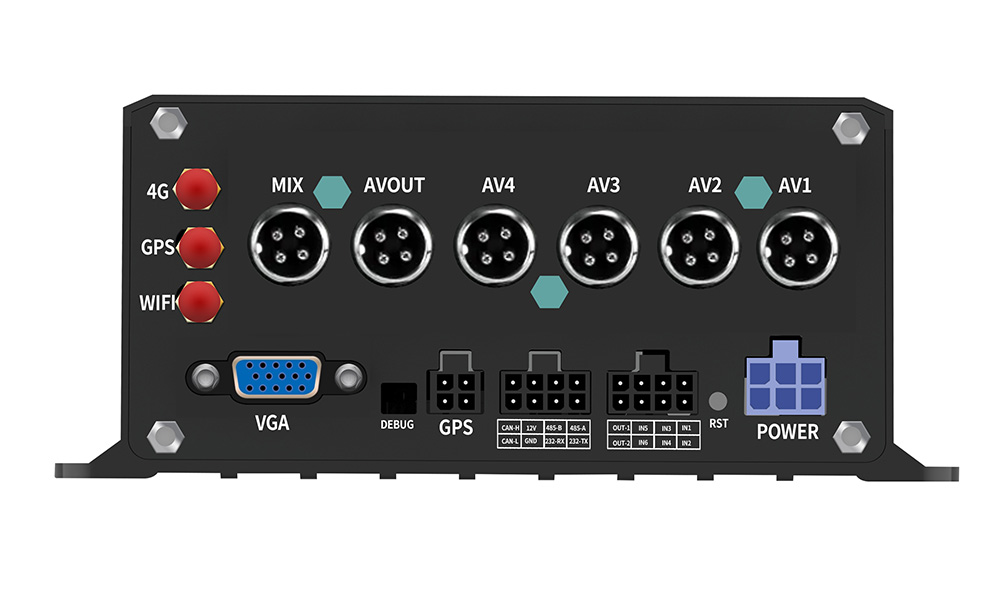

Hisilicon 4CH 1080P AI Mobile DVR ADAS DMS BSD Truck DVR BD-504HD
- Details
This is a new arrival Hisilicon Mobile DVR which support ADAS and DMS function, the video recording resolution is 1080P for full channels. It works with Max. 4TB HDD memory for long time recording purpose, and also support VGA/CVBS video output. 4G/GPS/WIFI optiona. ADAS,DMS,BSD customizable.
Features:
> Hisilicon SS522
> Max. 4CH 1080P @ 100fps or , 8CH 1080P @ 120fps or 8CH 720P@200fps
> AHD/CVBS signal inputs
> 4TB HDD or SD Card memory
> 4G/GPS/WIFI optional
> ADAS/BSD/DMS customized
> Power On/Scheduled recording modes
> Alarm I/O 6 input and 2 output
> 12V-36V power input

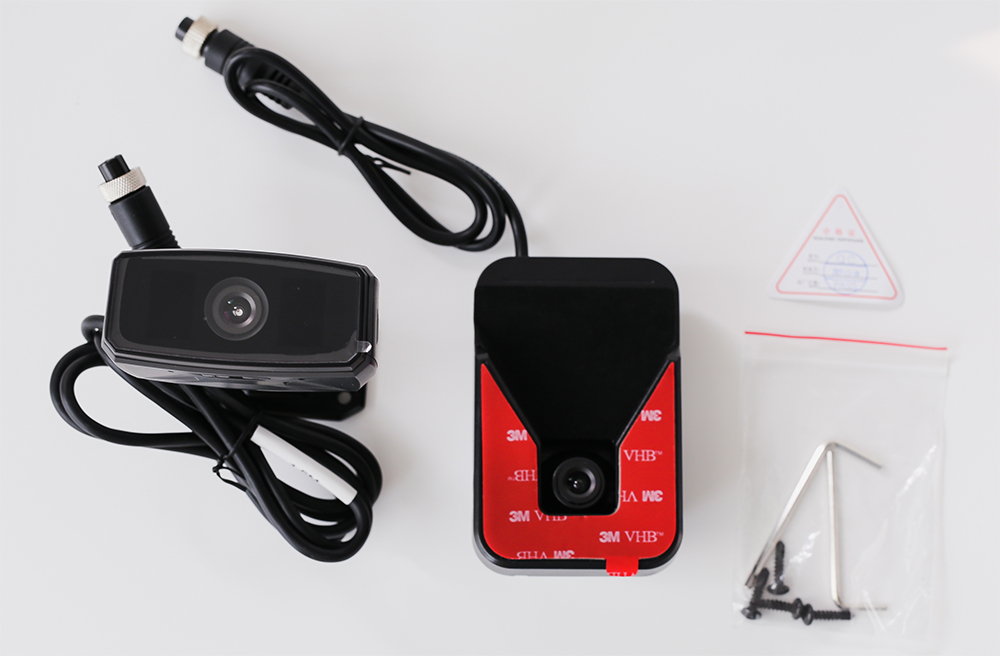

AI function, ADAS DMS BSD optional

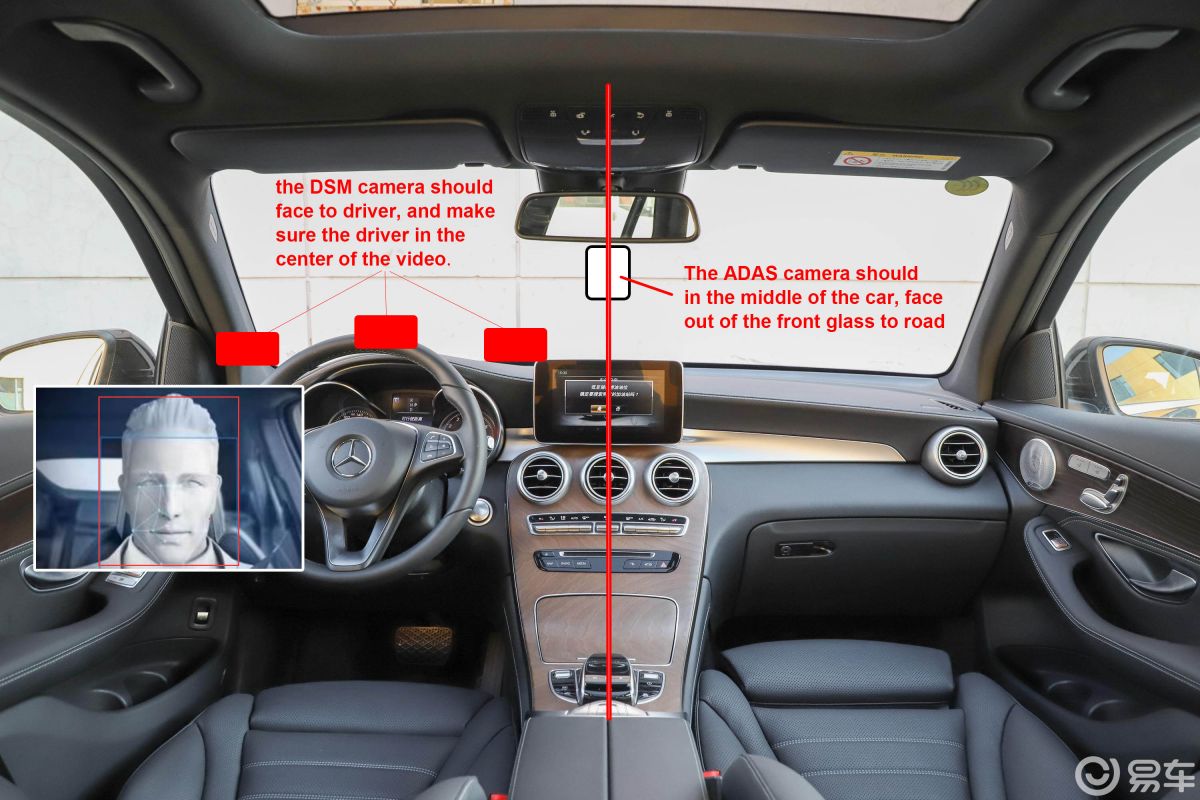

ADAS And DMS camera installation

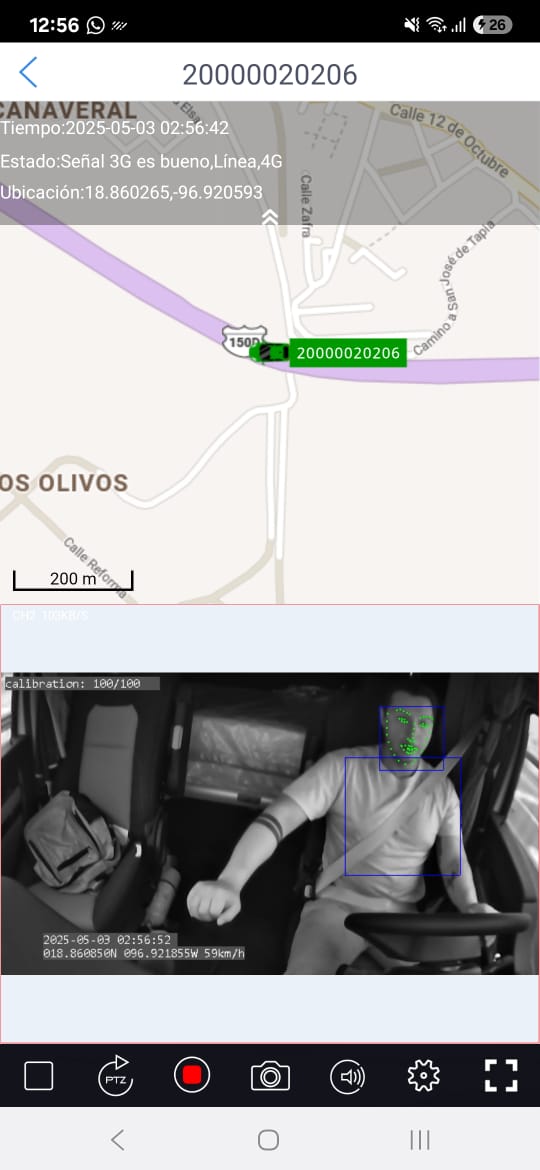

Real Shot of DMS camera
Specifications:
|
Item |
Data |
|
System |
Linux |
|
TV Mode |
Pal / NTSC |
|
Compression |
H.264 (H.265 can be customized) |
|
Resolution |
1920x1080/1280X720/640X480 |
|
Frame |
4CH 1080P Mode: 25 f/s each channel |
|
Special function |
4G/GPS/WIFI Optional ADAS/DMS/BSD optional |
|
CMS Software |
Offered for free |
|
Recording mode |
Power
up, manual, scheduled, |
|
Memory type |
2.5” HDD |
|
Max. memory |
4TB HDD memory |
|
Video input |
4 channel |
|
Input Signal |
2MP/1.3MP/1MP AHD camera and analog camera |
|
Output |
CVBS/VGA |
|
MODE |
PAL/NTSC shift |
|
Audio output |
1 channel |
|
I/O port |
6 alarm input and 2 alarm output |
|
System upgrade |
Support (SD card only for upgrade) |
|
Power input |
12V-36V |
|
Power output |
12V |
|
Working temperature |
-40℃ to 80℃ |
