Video Convertor

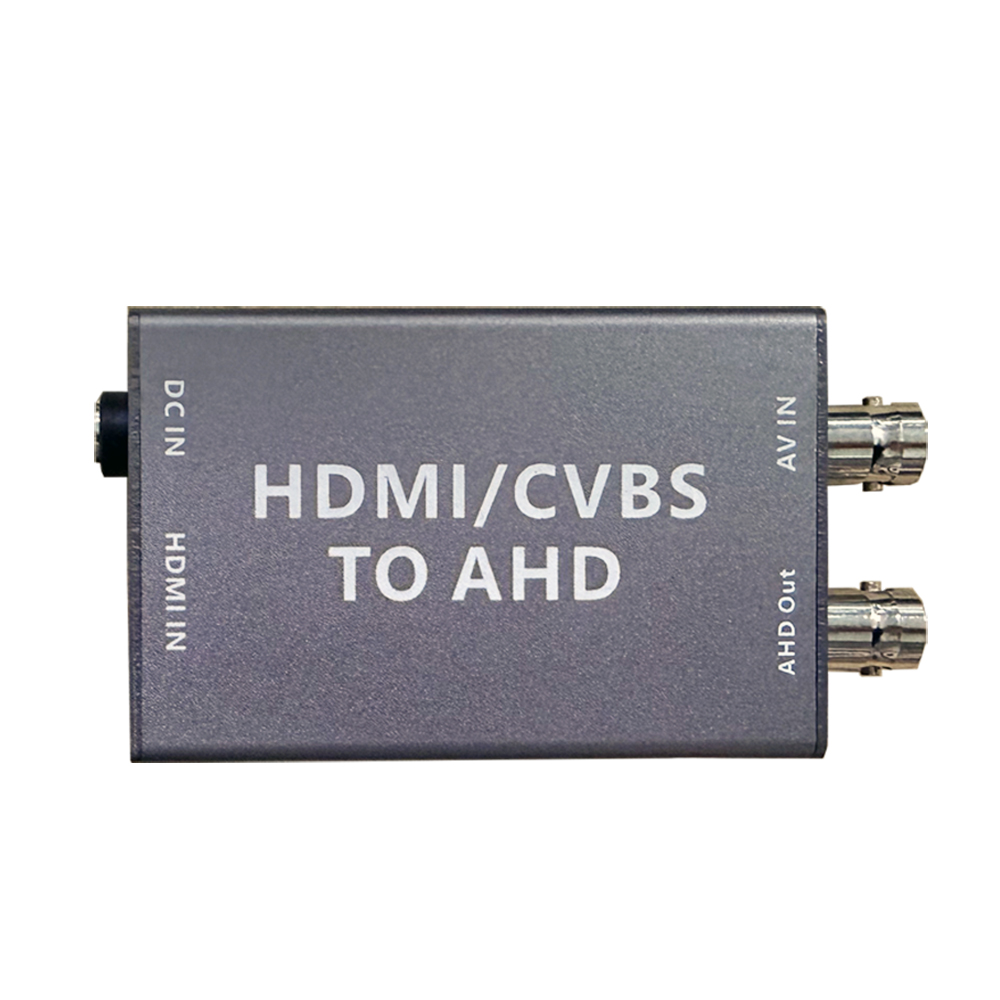

HDMI CVBS to AHD Video signal convertor Model CH2A-C
This is a video signal convertor support HDMI or CVBS signal input, output 1080P AHD. It’s widely used in FPV drone, inspection camera, machineshop truck video system field.
- Details

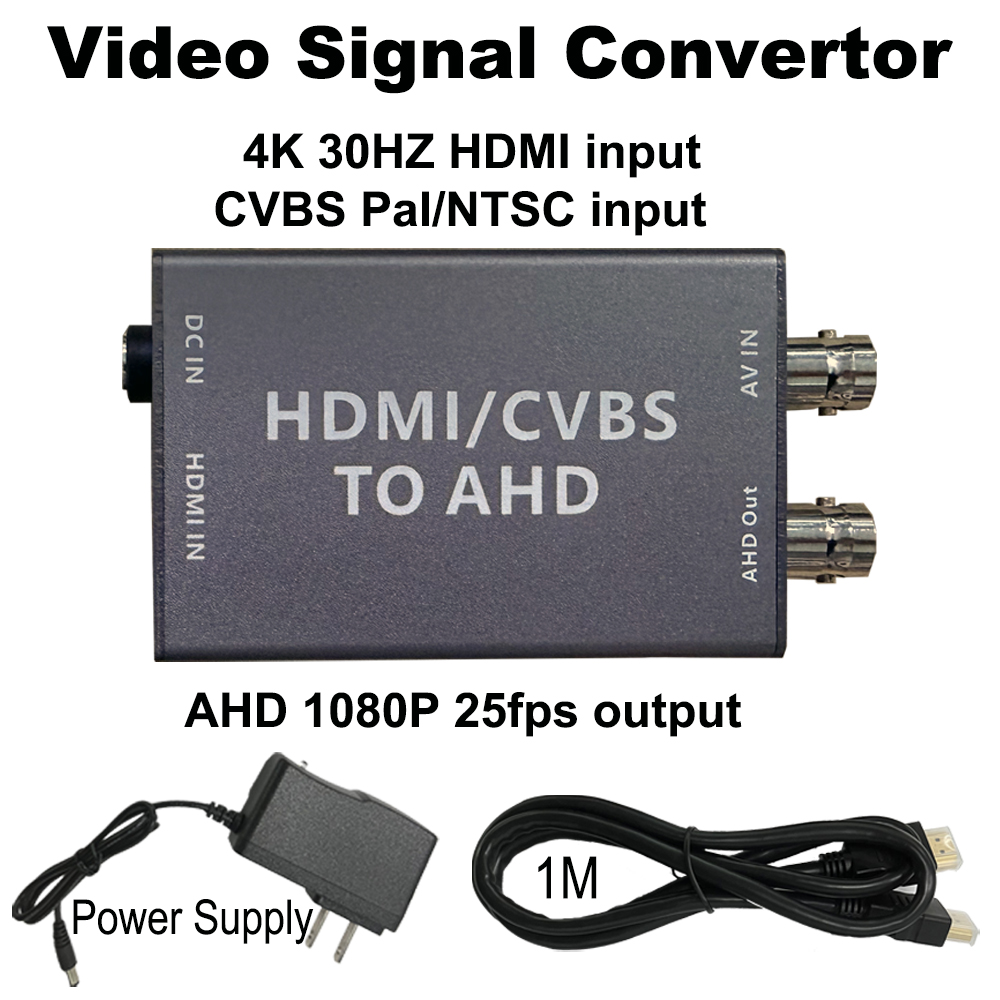

Features:
> 4K30HZ 3840×2160 HDMI input
> CVBS Pal/NTSC input
> AHD 1080P 25fps output
> 7v-15v power input
Specification
|
Item |
Data |
|
Power input |
DC 7-15V |
|
Signal input |
HDMI or AV(CVBS PAL /NTSC) |
|

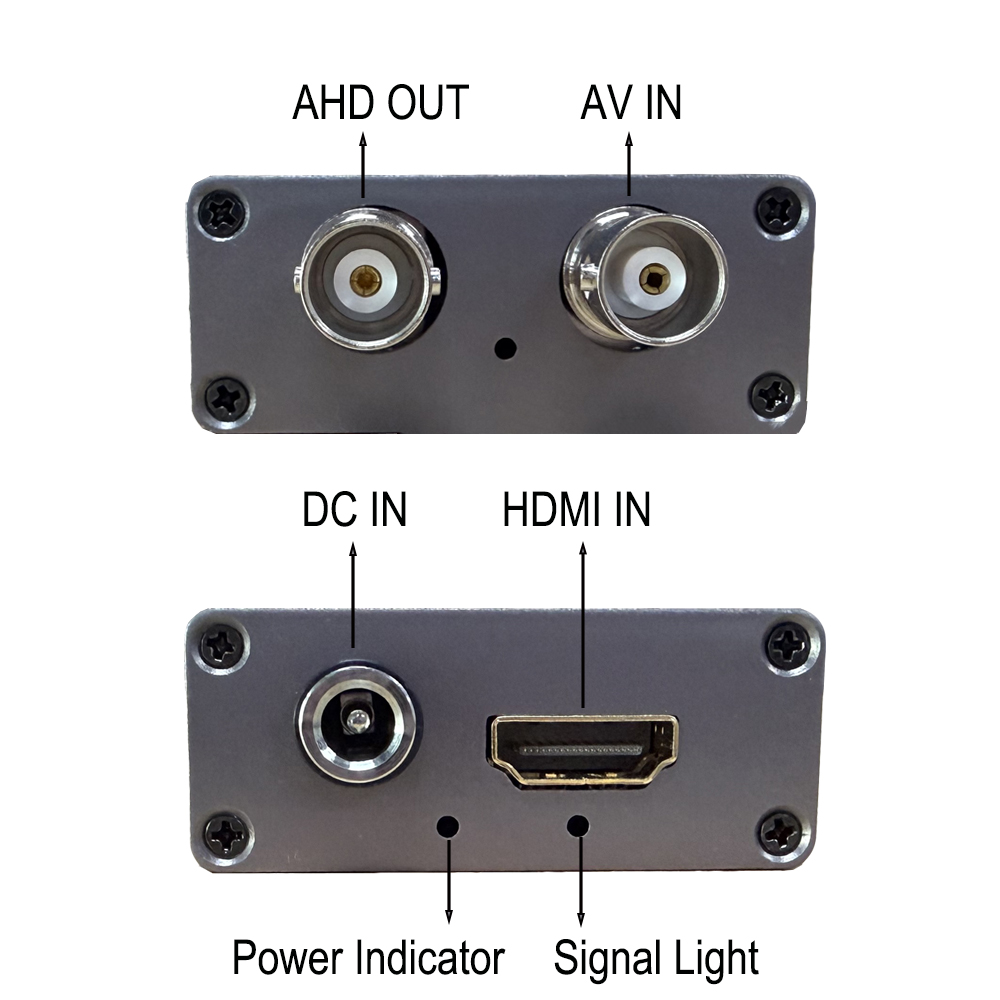

Input connector |
HDMI Q9-BNC |
|
HDMI input resolution |
4K 30HZ, 1080P 50/60HZ,1080P 25/30HZ 1080I 50/60HZ,720P 50/60HZ,720P 25/30HZ |
|
Output port |
AHD Q9-BNC |
|
AHD output data
|
Default 1080P25HZ Customized for 1080P 25/30HZ or 720P 25/30HZ |
|
Consumption |
＜1.5wat |
|
Working temp. |
0~ 65 ℃ |
|

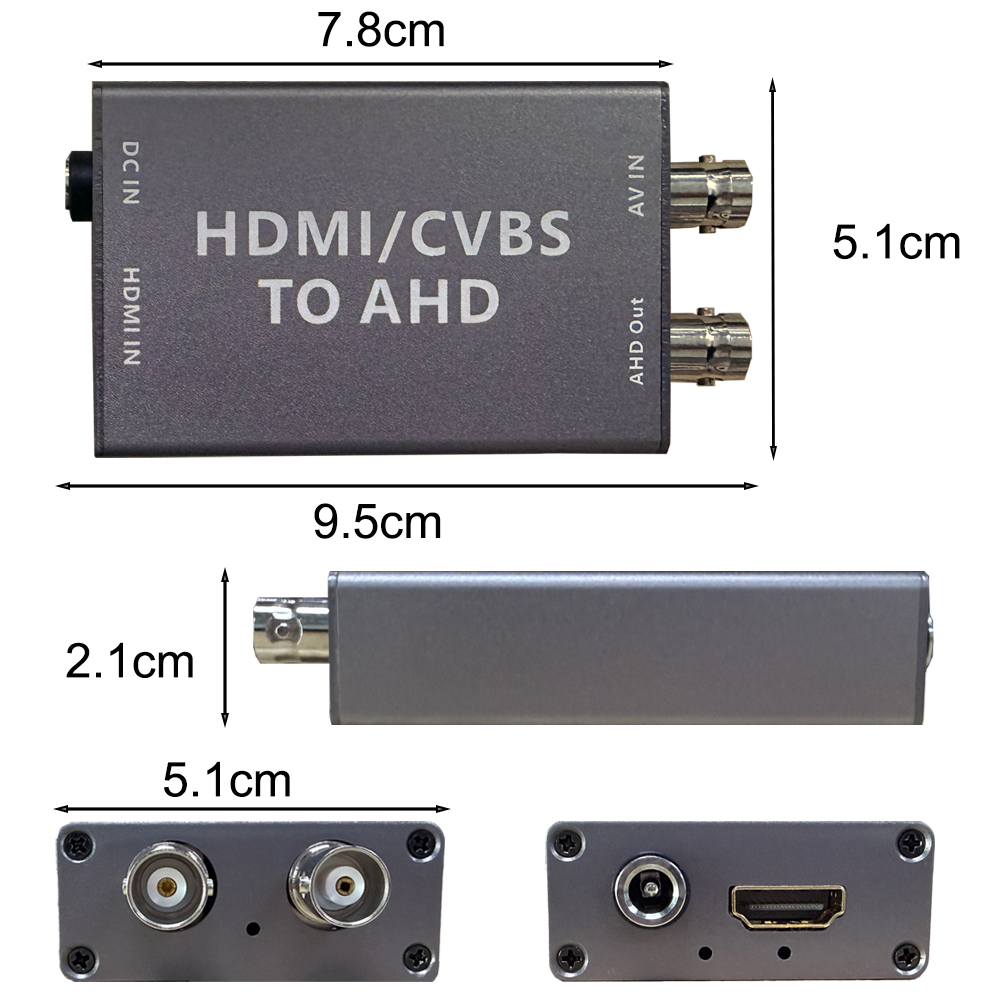

Dimension |
78*51*21mm(L*W*H) |
|
Weight |
81g |
