Crane and Forklift Camera

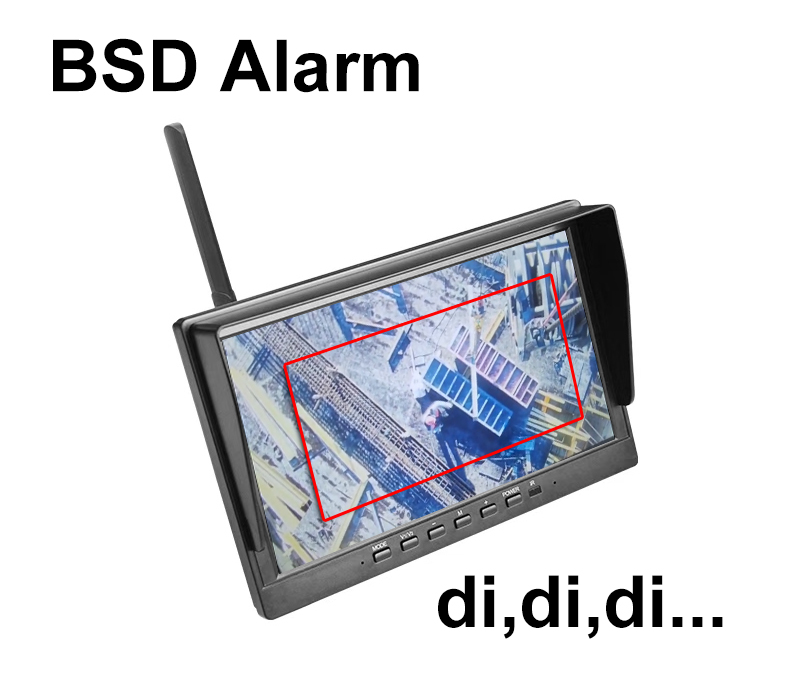

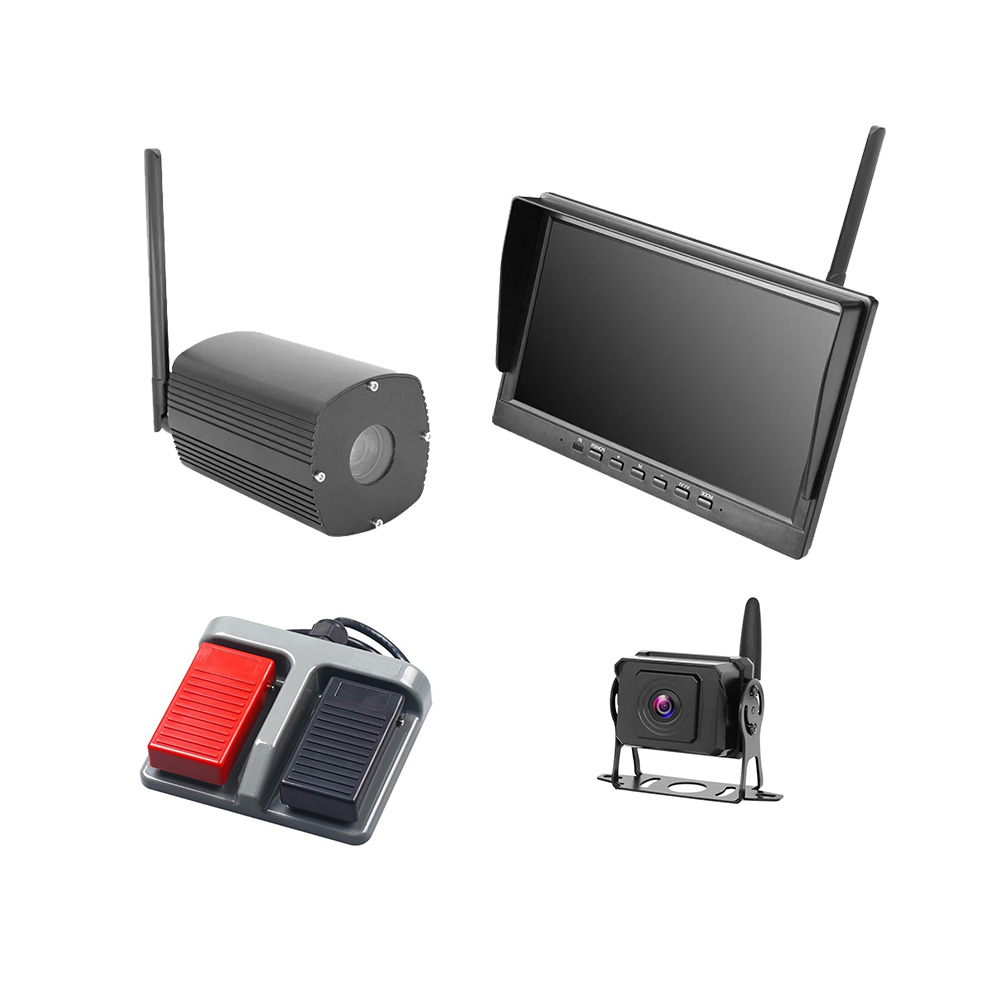

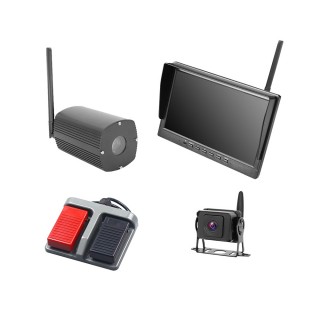

BSD Crane Truck Video System CSR-1001-C Series
- Details
Features:
> 100 meters working distance
> WiFi 6 wireless communication
> 720P Recording in Max. 128GB sd card
> 36 times zoom in and out
> 10.1inch monitor with recording
Specifications
|
Wireless receiving display |
||
|
System |
Color LCD display |
10.1-inch IPS display |
|
Wireless reception |
WiFi6 wireless transmission |
|
|
Picture mode |
Single screen/dual screen/Four screen |
|
|
Working frequency |
2400～2483.5MHz |
|
|
Video recording function |
Supports up to 128G SD card |
|
|
Video file |
MP4 format |
|
|
Receive sensitivity |
≤-86dB |
|
|
Other |
Receiving distance |
Open distance 150 meters |
|
Multi-frequency automatic frame skipping |
80 |
|
|
Resolution |
1024*600 |
|
|
Color format |
PAL/NTSC（Auto） |
|
|
Brightness |
600cd/m² |
|
|
Operating Voltage |
DC10～32V |
|
|
Dimensions |
190*120*62mm |
|
|

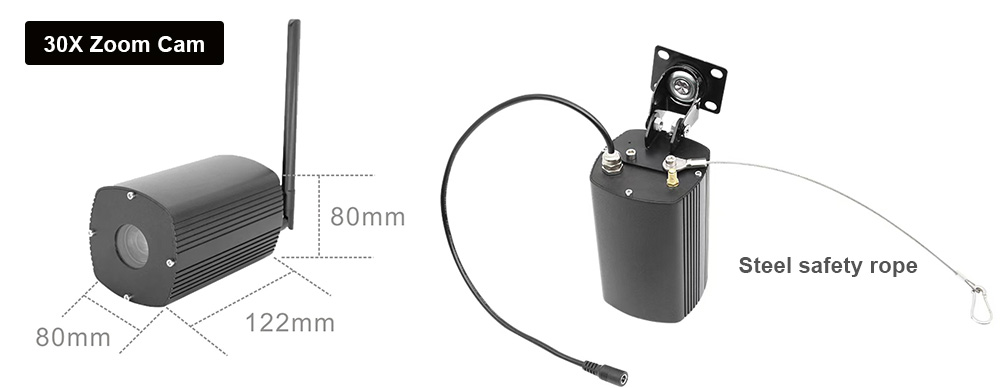

1.0MP digital wireless 30x digital zoom camera |
||
|
System |
Image Sensor |
1/2.7 Color |
|
Wireless transmission |
WiFi6 wireless transmission |
|
|
Wireless power |
5dB |
|
|
Launch distance |
Open distance 150 meters |
|
|
Resolution |
1MP |
|
|
Effective Pixels |
1280*720 |
|
|
Optical zoom |
36X |
|
|
Other |
Visible distance |
5～200 meters |
|
Focus mode |
Manual focus |
|
|
Waterproof level |
IP68 |
|
|
Operating temperature |
-20℃～60℃ |
|
|
Storage temperature |
-30℃～70℃ |
|
