8 channel

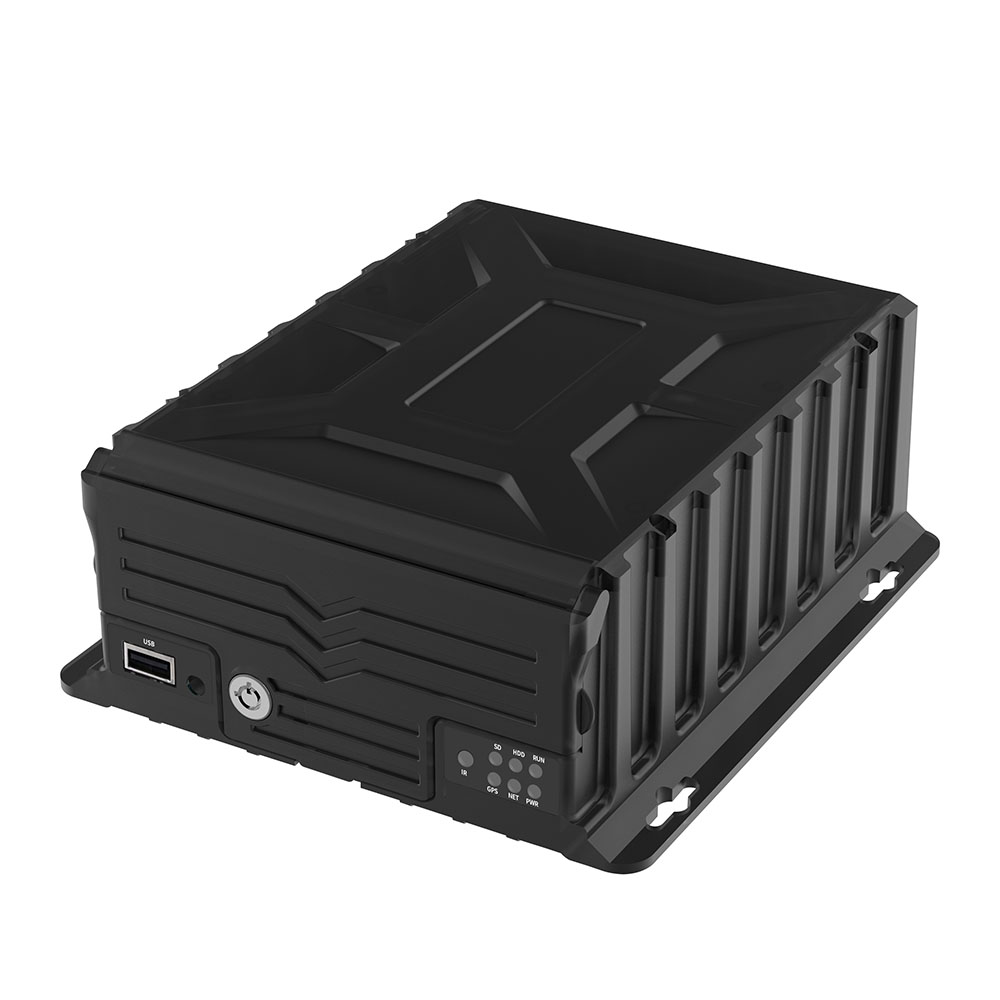

AI 8CH 1080P HDD Mobile DVR ADAS DSM BSD For Train Metro Truck Boat BD-508
- Details
It is a 8CH Mobile DVR support 8 1080P AHD camera input for recording, 4G/GPS/WIFI function optional, ADAS/DMS/BSD special function customized. Max. 4TB HDD for saving recording files. The strong metal housing protecting HDD memory very well. It can be used for train, metro, big truck, fuel tank, boats CCTV system.
Features:
> Hisilicon SS522
> Max. 8CH 1080P @ 120fps or 8CH 720P@200fps> AHD/CVBS signal inputs
> 4TB HDD or SD Card memory
> 4G/GPS/WIFI optional
> ADAS/BSD/DMS OPTIONAL
> Power On/Scheduled recording modes
> Alarm I/O 6 input and 2 output
> 12V-36V power input
Professional Player
CMS V7 Platform free for use
Cell phone monitoring
AI function, ADAS and DMS camera
ADAS DMS Camera installation tips
DMS camera working
Specifications:
|
Item |
Data |
|
System |
Linux |
|
TV Mode |
Pal / NTSC |
|
Compression |
H.264 (H.265 can be customized) |
|
Resolution |
1920x1080/1280X720/640X480 |
|
Frame |
4CH 1080P Mode: 25 f/s each channel 8CH 1080P mode: Pal: 15f/s each channel , NTSC: 20f/s each channel 8CH 720P: Pal: 25f/s each channel , NTSC: 30f/s each channel |
|
Special function |
4G/GPS/WIFI Optional ADAS/DMS/BSD optional |
|
CMS Software |
Offered for free |
|
Recording mode |
Power
up, manual, scheduled, |
|
Memory type |
2.5” HDD |
|
Max. memory |
4TB HDD memory |
|
Video input |
4/8 channel |
|
Input Signal |
2MP/1.3MP/1MP AHD camera and analog camera |
|
Output |
CVBS/VGA |
|
MODE |
PAL/NTSC shift |
|
Audio output |
1 channel |
|
I/O port |
6 alarm input and 2 alarm output |
|
System upgrade |
Support (SD card only for upgrade) |
|
Power input |
12V-36V |
|
Power output |
12V |
|
Working temperature |
-40℃ to 80℃ |
