ADAS DMS Mobile DVR kit 8 channel 1080P Truck Bus MDVR BD-338HDGE
This is a compact 8 channel 1080P HD Mobile DVR, it works with 1pcs max. 256GB SD memory, support VGA/CVBS video output. 4G/GPS, ADAS DMS function optional. It’s a complete inexpensive AI Mobile DVR solution for truck,bus,commercial vehicles.
- Details
This is a compact 8 channel 1080P HD Mobile DVR, it works with 1pcs max. 256GB SD memory, support VGA/CVBS video output. 4G/GPS, ADAS DMS function optional. It’s a complete inexpensive AI Mobile DVR solution for truck,bus,commercial vehicles.
Features:
> Hisilicon SS522
> 8CH 1080P @ 120fps or 8CH 720P@200fps
> AHD/CVBS signal inputs
> SD Card memory
> 4G/GPS optional
> ADAS/BSD/DMS customized
> Power On/Scheduled recording modes
> Alarm I/O 4 input
> 12V-36V power input

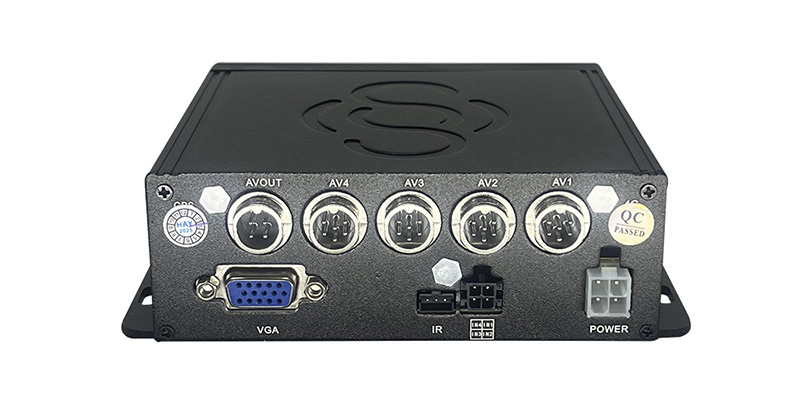

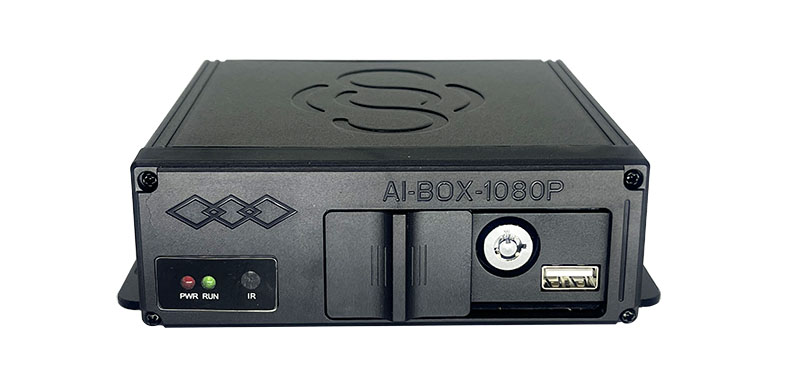

Front and Rear panel of DVR

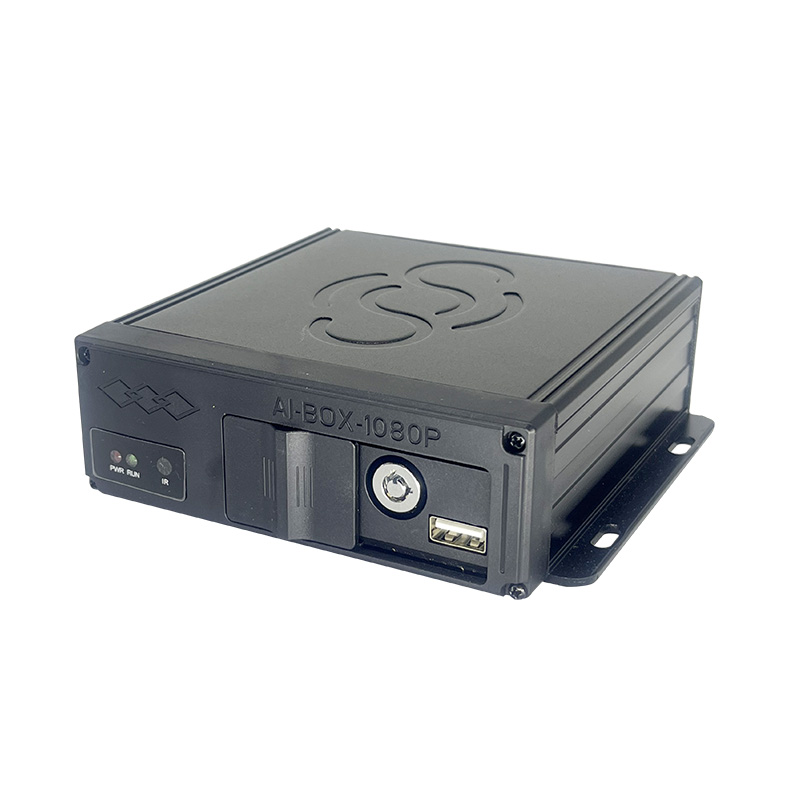

Compact size for easy installation
5 pins aviation connector with convertor video cable
DVR Accessories

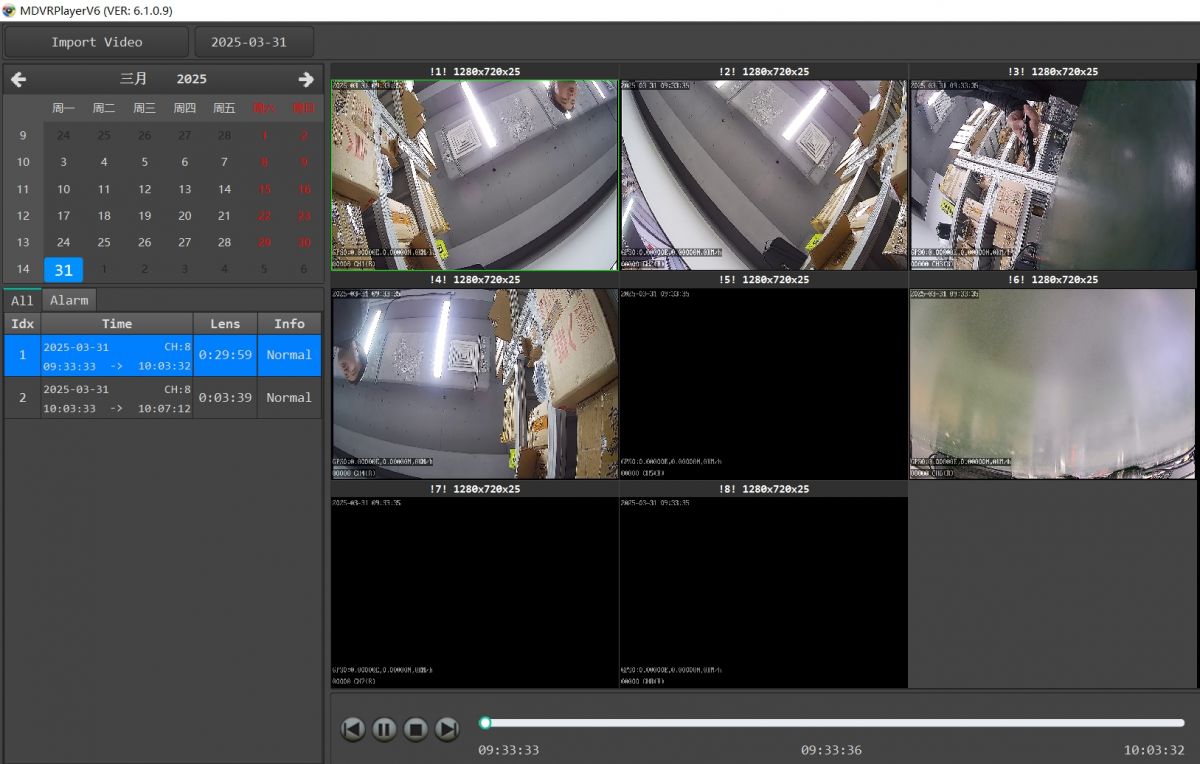

Professional player

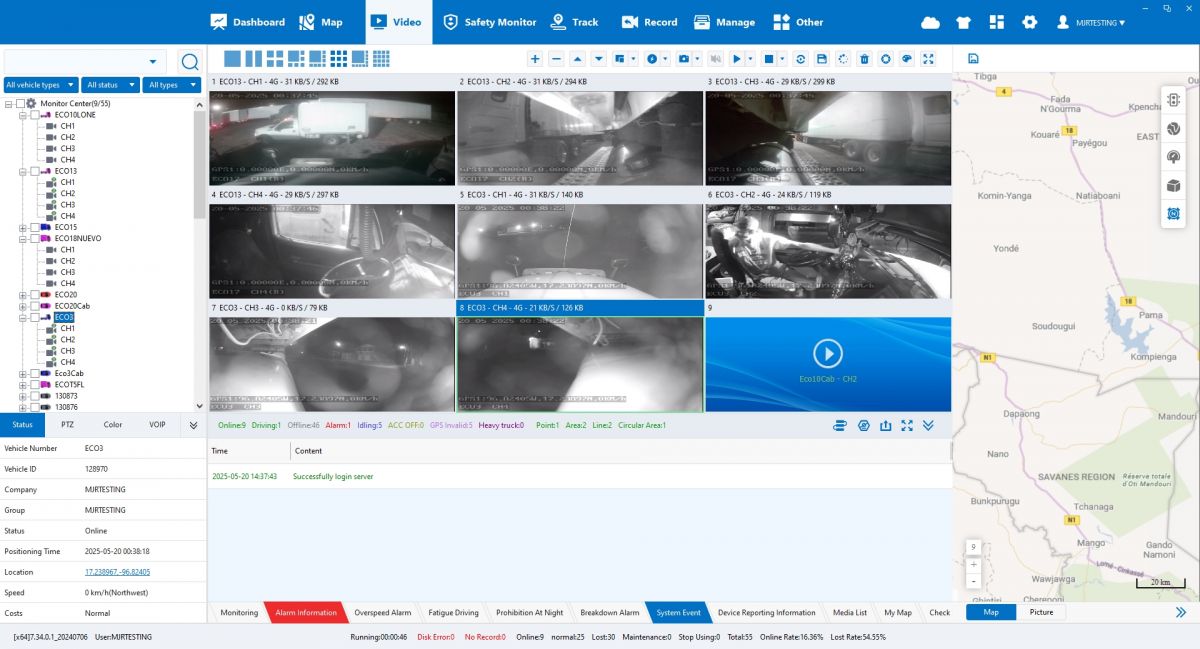

Free CMS software for 4G live view and GPS tracking in real time

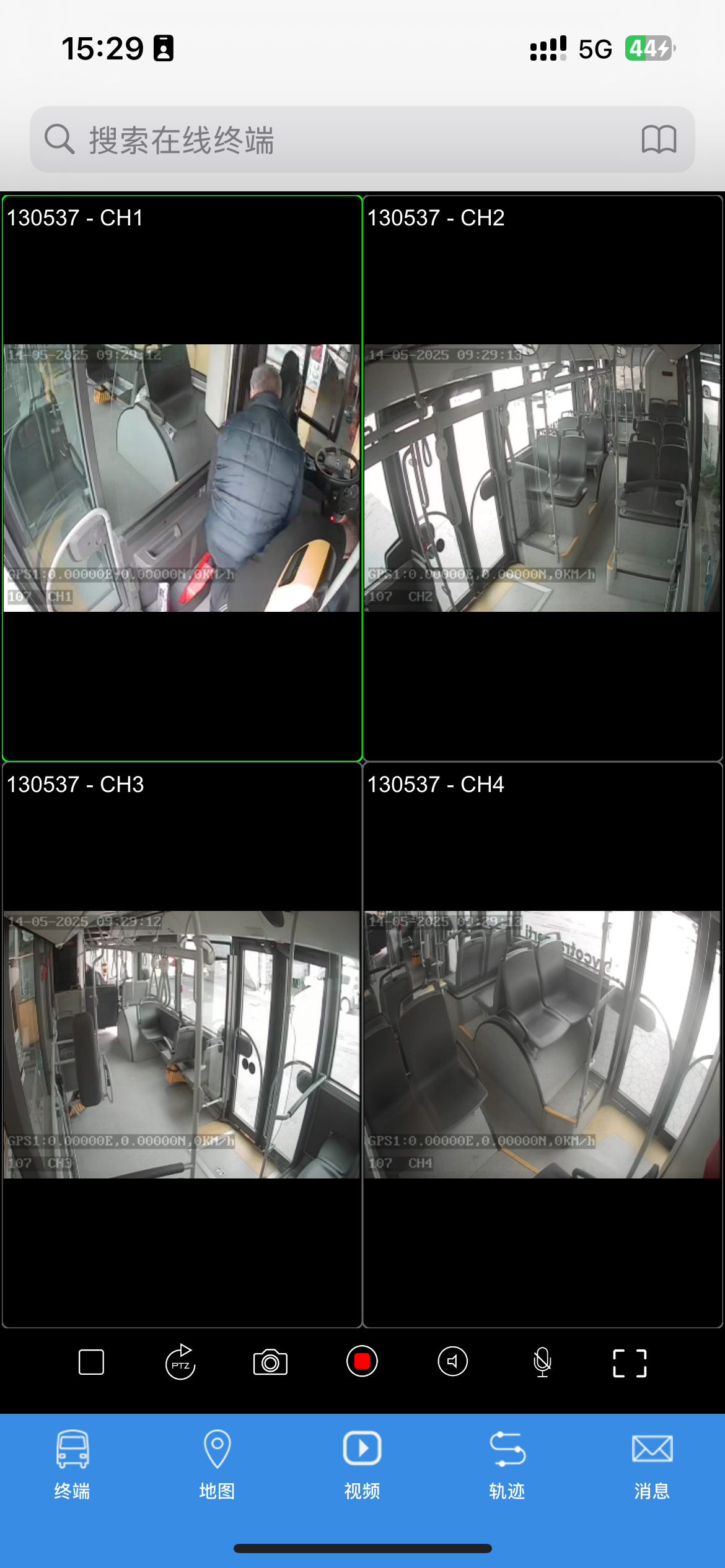

Watching on mobile phone too. Support IOS and Android phone both.

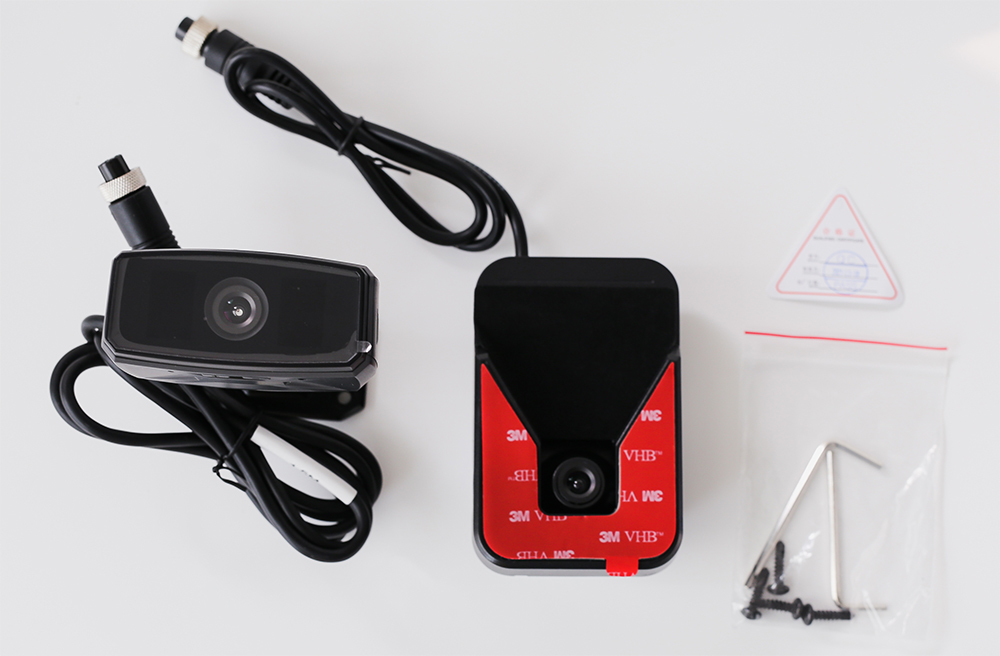

ADAS and DMS function optional

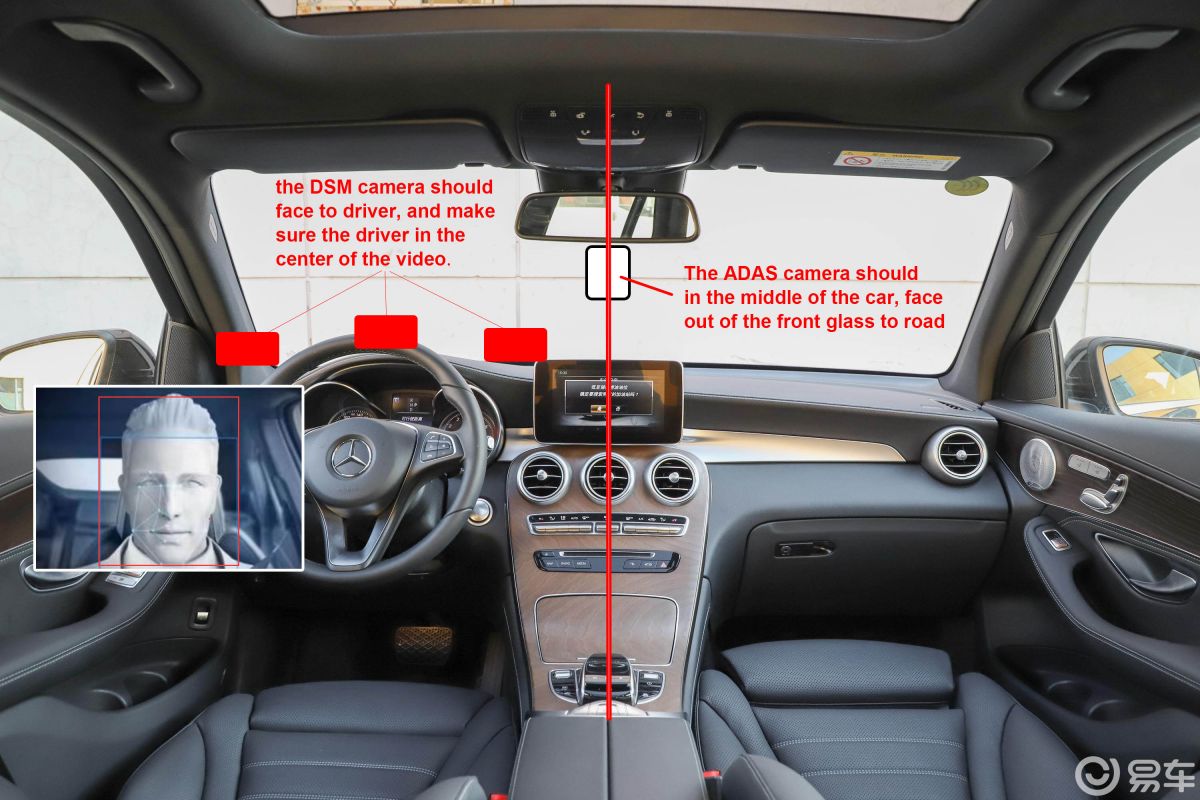

Sweet tips for ADAS and DMS camera installation
Specifications:
|
Item |
Data |
|
System |
Linux |
|
TV Mode |
Pal / NTSC |
|
Compression |
H.264 (H.265 can be customized) |
|
Resolution |
1920x1080/1280X720/640X480 |
|
Frame |
8CH 1080P mode: Pal: 15f/s each channel , NTSC: 20f/s each channel 8CH 720P: Pal: 25f/s each channel , NTSC: 30f/s each channel |
|
Special function |
4G/GPS/Optional ADAS/DMS/BSD optional |
|
CMS Software |
Offered for free |
|
Recording mode |
Power up, manual, scheduled, |
|
Memory type |
Standard SD CARD |
|
Max. memory |
256GB HDD memory |
|
Video input |
8 channel |
|
Input Signal |
2MP/1.3MP/1MP AHD camera and analog camera |
|
Output |
CVBS/VGA |
|
MODE |
PAL/NTSC shift |
|
Audio output |
1 channel |
|
I/O port |
4 alarm input |
|
System upgrade |
Support (SD card only for upgrade) |
|
Power input |
12V-36V |
|
Power output |
12V |
|
Working temperature |
-40℃ to 80℃ |
