4G GPS MDVR
4G 8CH 1080P Mobile DVR ADAS DMS BSD kit Model BD-338HDGE
- Details
This is a compact 8 channel 1080P HD Mobile DVR, it works with 1pcs max. 256GB SD memory, support VGA/CVBS video output. 4G/GPS, ADAS DMS function optional. It’s a complete inexpensive AI Mobile DVR solution for truck,bus,commercial vehicles.
Features:
> Hisilicon SS522
> 8CH 1080P @ 120fps or 8CH 720P@200fps
> AHD/CVBS signal inputs
> SD Card memory
> 4G/GPS optional
> ADAS/BSD/DMS customized
> Power On/Scheduled recording modes
> Alarm I/O 4 input
> 12V-36V power input

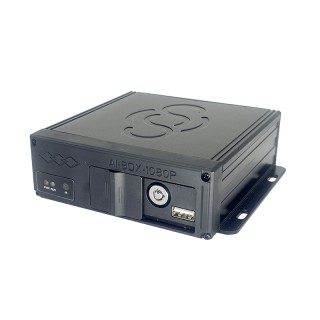

Front and Rear panel of DVR
Compact size for easy installation
5 pins aviation connector with convertor video cable
DVR Accessories
Professional player
Free CMS software for 4G live view and GPS tracking in real time
Watching on mobile phone too. Support IOS and Android phone both.
ADAS and DMS function optional
Sweet tips for ADAS and DMS camera installation
Specifications:
Item
Data
System
Linux
TV Mode
Pal / NTSC
Compression
H.264 (H.265 can be customized)
Resolution
1920x1080/1280X720/640X480
Frame
8CH 1080P mode:
Pal: 15f/s each channel , NTSC: 20f/s each channel
8CH 720P:
Pal: 25f/s each channel , NTSC: 30f/s each channel
Special function
4G/GPS/Optional
ADAS/DMS/BSD optional
CMS Software
Offered for free
Recording mode
Power up, manual, scheduled,
Memory type
Standard SD CARD
Max. memory
256GB HDD memory
Video input
8 channel
Input Signal
2MP/1.3MP/1MP AHD camera and analog camera
Output
CVBS/VGA
MODE
PAL/NTSC shift
Audio output
1 channel
I/O port
4 alarm input
System upgrade
Support (SD card only for upgrade)
Power input
12V-36V
Power output
12V
Working temperature
-40℃ to 80℃
motion detection, alarm
