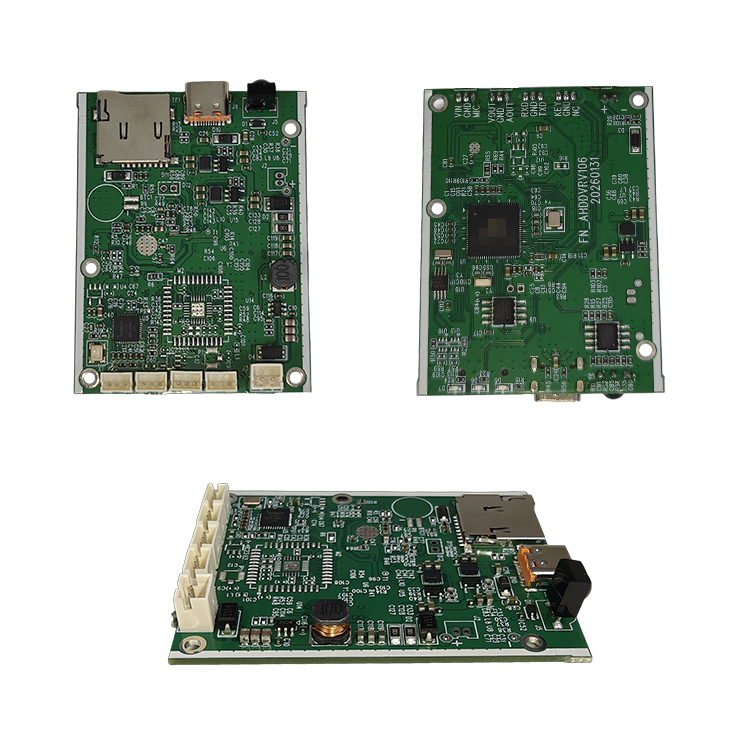

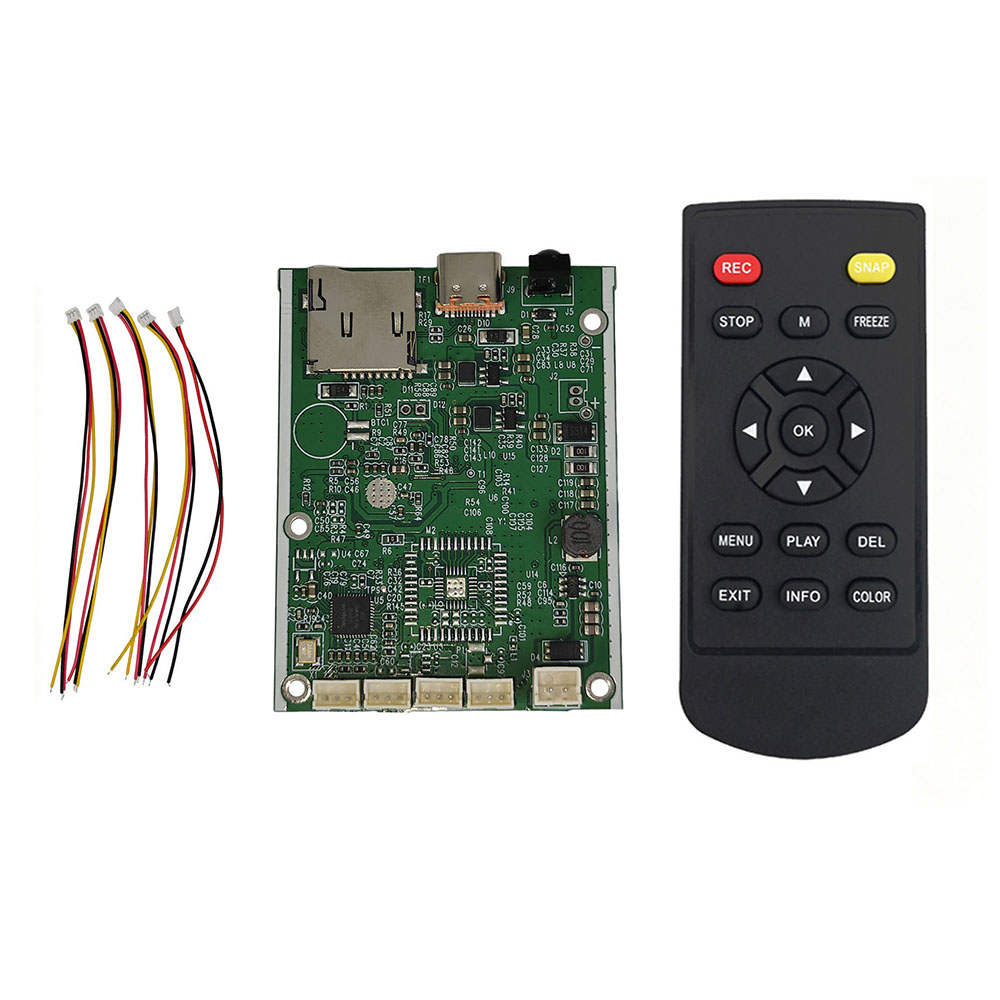

4 in 1 TVI CVI AHD CVBS SD DVR Module BD-700P
This is a 4in1 multi video signal DVR module which support AHD,TVI,CVI,CVBS video signal. It support Max. 512GB micro SD card for recording videos. There has a USB-C to power to DVR module or connect to computer to read memory card and copy files. WiFi P2P function customized by order. The module is widely used for different video systems such as inspection camera, underwater video system, medical video system.
- Details
Features:
1. AHD,TVI,CVI,CVBS signal input
2. 1080P,720,480P recording resolution
3. Max. 512GB Micro SD memory
4. Recording mode Auto,Manual,motion
5. Frame rate 5,15,30fps optional
6. Language English,Japanese,Russian,Chinese
7. USB-C for power in or transfer files to PC
8. 5-20V wide voltage input
9. WiFi P2P customized, works with free APP on phone.
1. AHD,TVI,CVI,CVBS signal input
2. 1080P,720,480P recording resolution
3. Max. 512GB Micro SD memory
4. Recording mode Auto,Manual,motion
5. Frame rate 5,15,30fps optional
6. Language English,Japanese,Russian,Chinese
7. USB-C for power in or transfer files to PC
8. 5-20V wide voltage input
9. WiFi P2P customized, works with free APP on phone.
Specifications:
| Item | Data |
| Input signal | AHD,TVI,CVI,CVBS |
| Camera pixel | 2mp/1.3mp/1mp |
| Recording resolution | 1080P/720P/480P |
| Frame rate | 5,15,30fps |
| Memory type | Micro SD card |
| Memory capacity | Max. 256GB |
| Video output | CVBS PAL/NTSC |
| Audio In/Out | Support |
| Communication | Serial port/Keypad |
| USB-C | Power input,read card,upgrade |
| Recording mode | Manually/Power up |
| Recording time | 1,3,5,15,30 minutes |
| Language | English,Russian,Chinese |
| OSD On/off | Support |
| Power input | DC5V-15V |
| Power consumption | about 1.5W |
