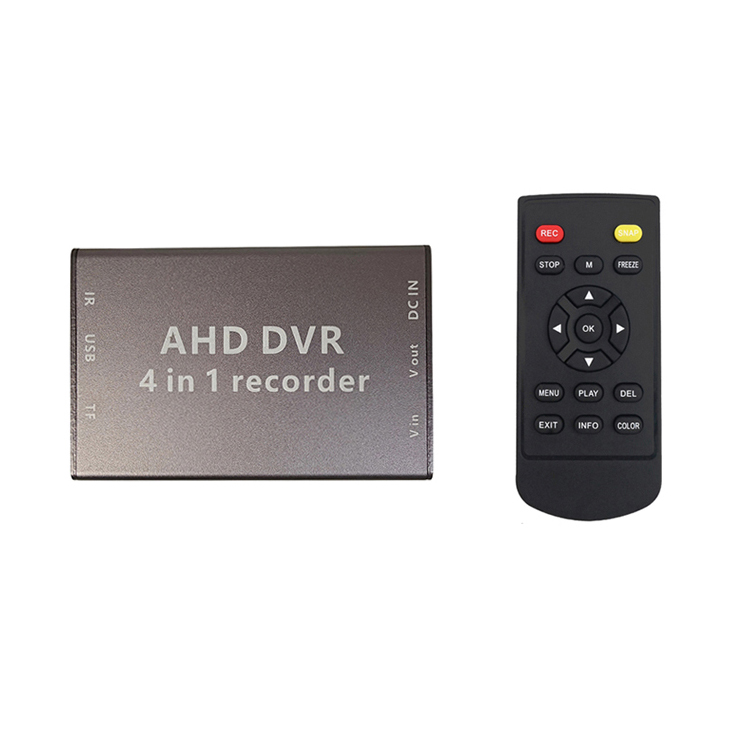

4in1 1080P 1CH SD DVR AHD TVI CVI CVBS Recorder Box BD-700
This is a 4 in 1 mini DVR which support AHD/TVI/CVI/CVBS signal input. Max. 256GB micro sd card for recording,max. 2MP camera working and 1080P video recording. It's widely used as a recording core board in FPV, inspection video system, medical video system, CCTV, security accessing system and so on. We provide customization for different applications.
- Details
This is a 4 in 1 mini DVR which support AHD/TVI/CVI/CVBS signal input. Max. 256GB micro sd card for recording,max. 2MP camera working and 1080P video recording. It's widely used as a recording core board in FPV, inspection video system, medical video system, CCTV, security accessing system and so on. We provide customization for different applications.
Features:
1. Support AHD/TVI/CVI/CVBS signal input, max. 2mp;
2. CVBS output
3. Recording resolution 1080P/720P/480P;
4. Frame rate 30/15/5 FPS optional;
5. Max. 256GB micro SD

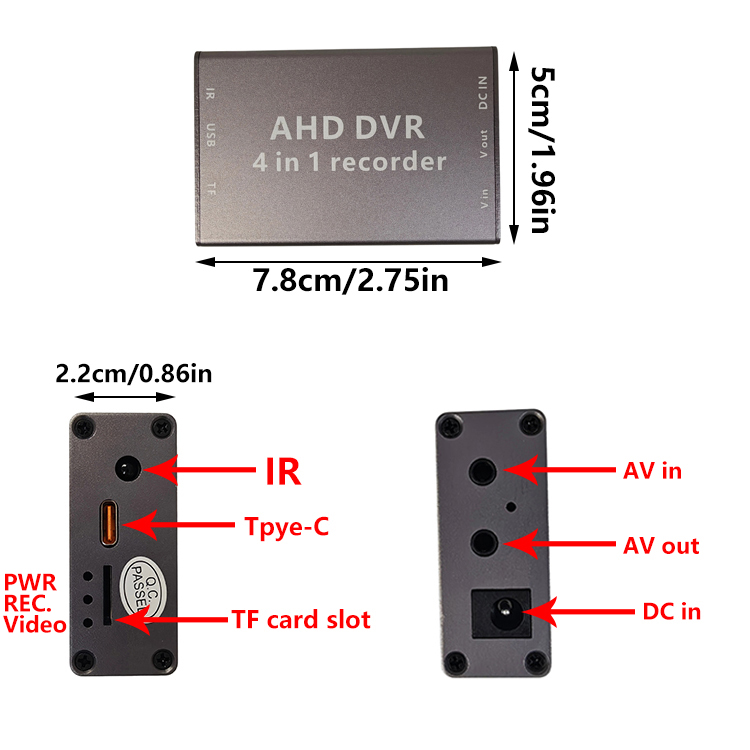

6. USB-C for power in, read card, upgrade;
7. Serial port communication
8. OSD On/off;
9. DC 5V-15V input.
Specifications:
| Item | Data |
| Input signal | AHD,TVI,CVI,CVBS |
| Camera pixel | 2mp/1.3mp/1mp |
| Recording resolution | 1080P/720P/480P |
| Frame rate | 5,15,30fps |
| Memory type | Micro SD card |
| Memory capacity | Max. 256GB |
| Video output | CVBS PAL/NTSC |
| Audio In/Out | Support |
| Communication | Serial port/Keypad |
| USB-C | Power input,read card,upgrade |
| Recording mode | Manually/Power up |
| Recording time | 1,3,5,15,30 minutes |
| Language | English,Russian,Chinese |
| OSD On/off | Support |
| Power input | DC5V-15V |
| Power consumption | about 1.5W |
