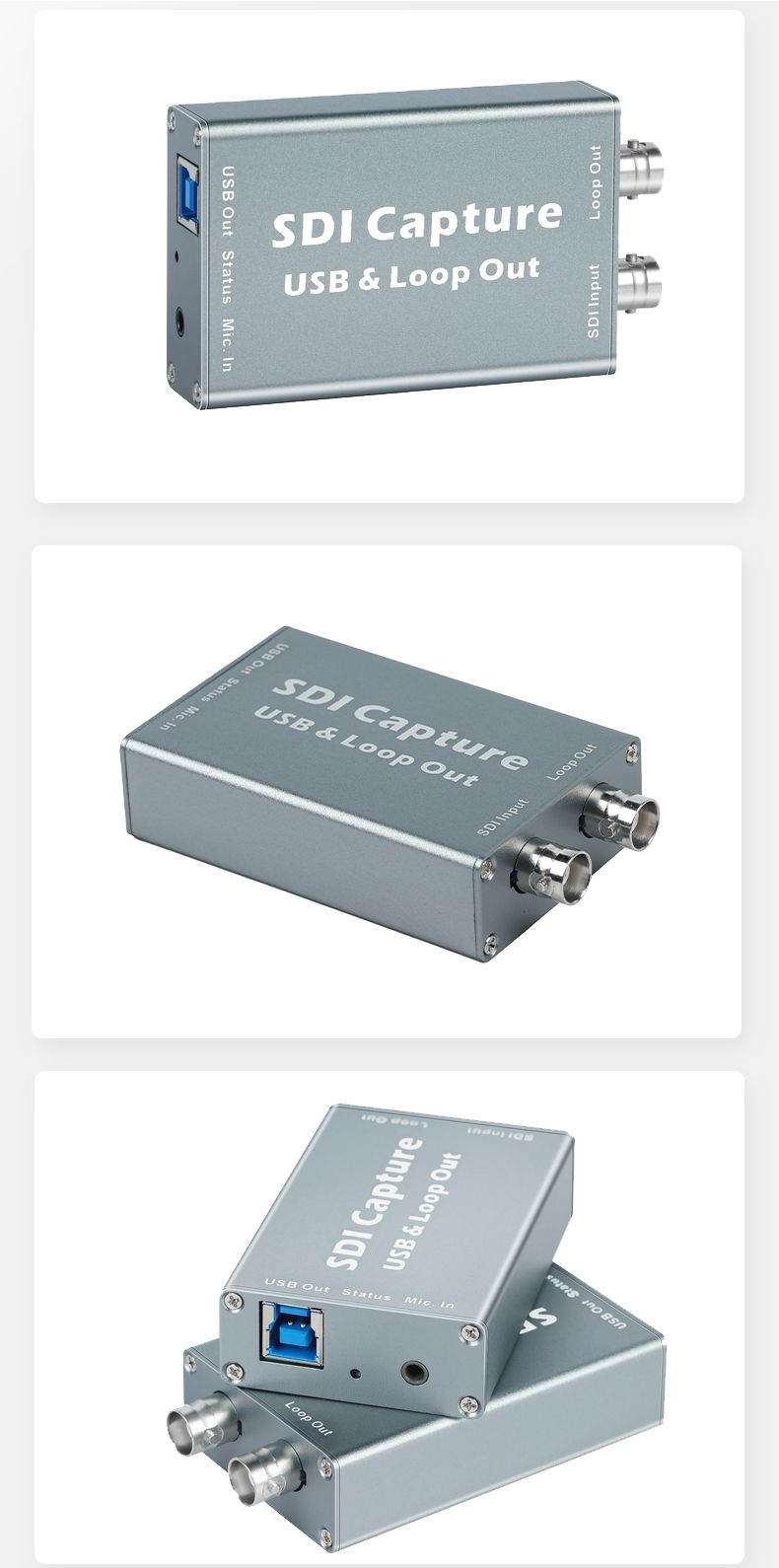

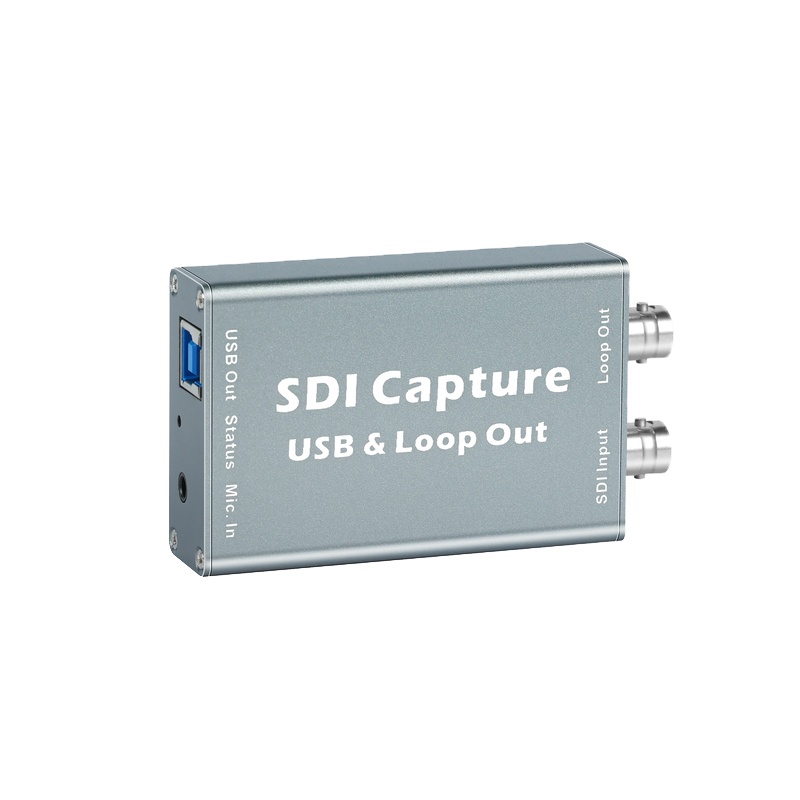

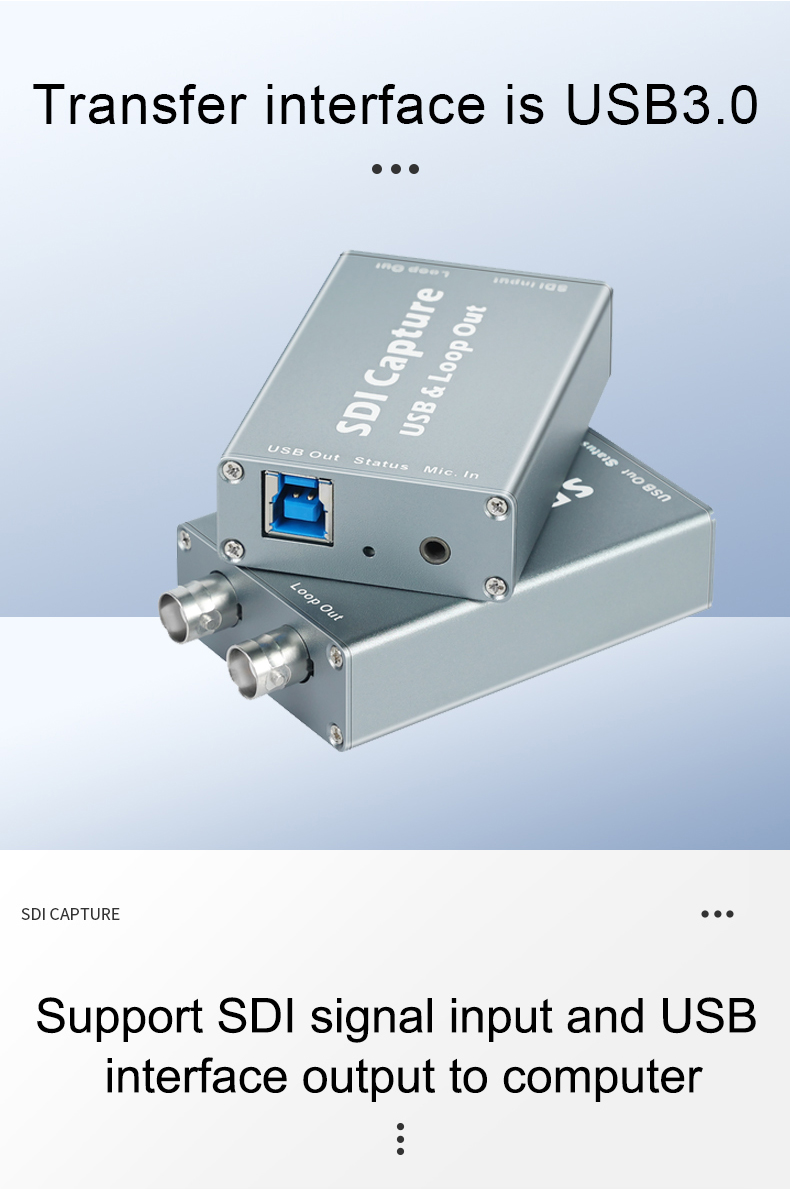

SDI to USB Video Capture Card S2U
- Details
Features:
1. Resolution 1080P
2. Frame 5-60 fps adjustable
3. UVC/UAC standard
4. Driver free
5. Compatible with Windows, Linux and Android

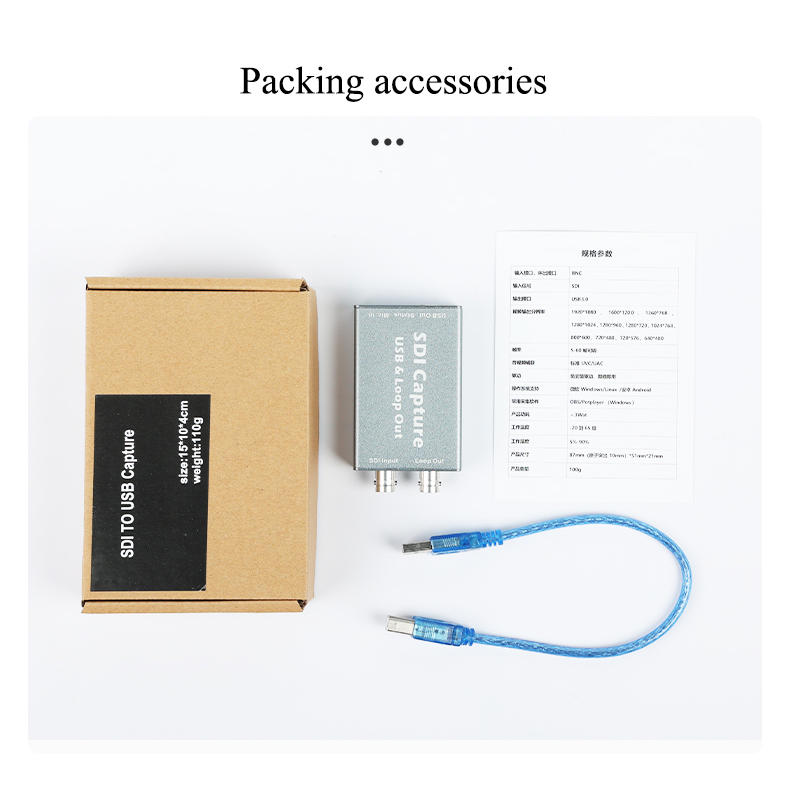

Packing list:
Capture card : 1 pcs
USB cable: 1pcs
Manual book: 1pcs
Specifications:

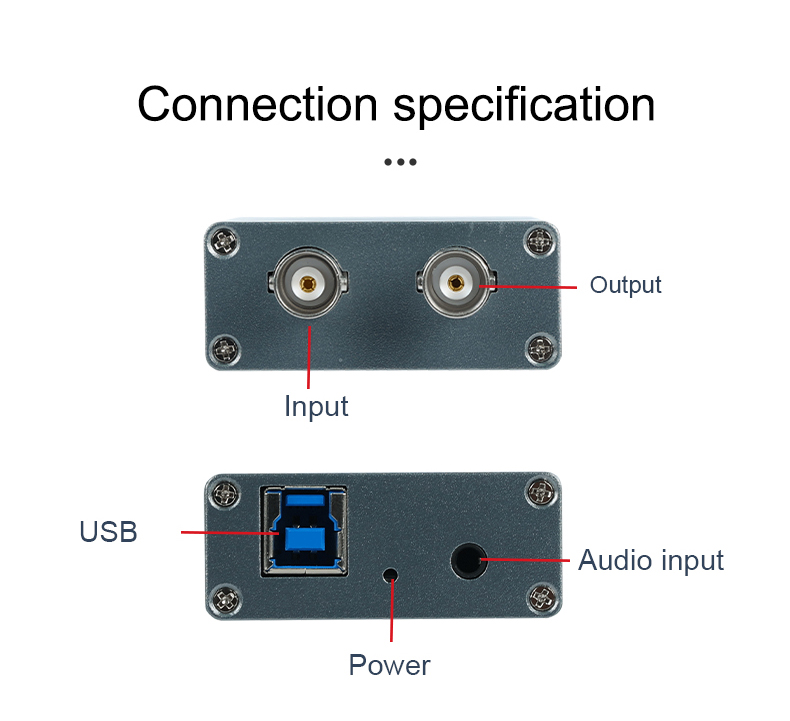

In/out put port |
BNC |
Input signal |
SDI |
Output port |
USB3.0 |
Video out resolution |
1920*1080、1600*1200、1360*768、1280*1024、1280*960、1280*720、1024*768、800*600、720*480、720*576、640*480 |
Frame |
5-60 frame adjustable |
A/V capture |
Standard UVC/UAC |
Driver |
Driver free |
Operation system |
Windows/Linux / Android |
Compatible software |
OBS/Potplayer(Windows) |
Consumption |
<3Wat |
Working temp. |
-20℃-65℃ |
Working Humd. |
5%-90% |
Dimension |
97mm*51mm*21mm |
Weight |
100g |
