Car GPS tracker

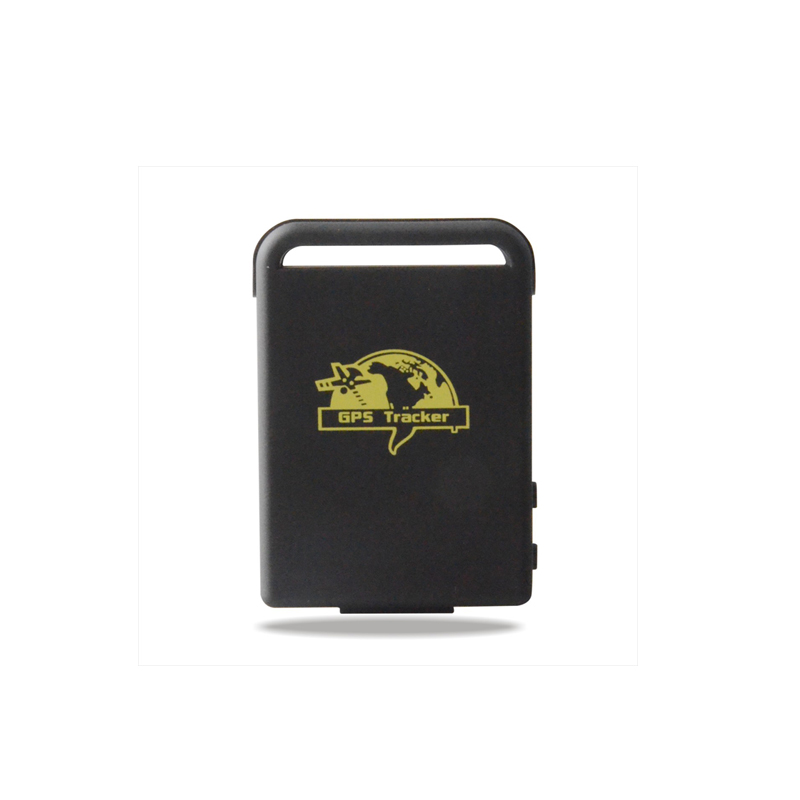

Portable small size GPS tracker Model: BD-102

This is a portable type GPS tracker can be used on vehicle, also for children,pet, elders.
  • Details
Webserver for free testing
ID: DEMO PW:8888
And you have 3 ways to track the device.
1. Track by SMS, see the position on mobile phone.
2. Track on web server. Free version save data for 7 days.
3. Track on PC server. This server helps save data in your computer, all for free.

>Locate by SMS or GPRS, and check position by google earth.
>Auto Report position.
>Send the last location if it enters into the blind area.
>Add or change Username and Password.
>Monitoring and SOS feature.
>Alert users when it breaches the restricted area.
>Alert userS when it begins to move.
>Alert user when it overspeed

>Alert users when battery with low power

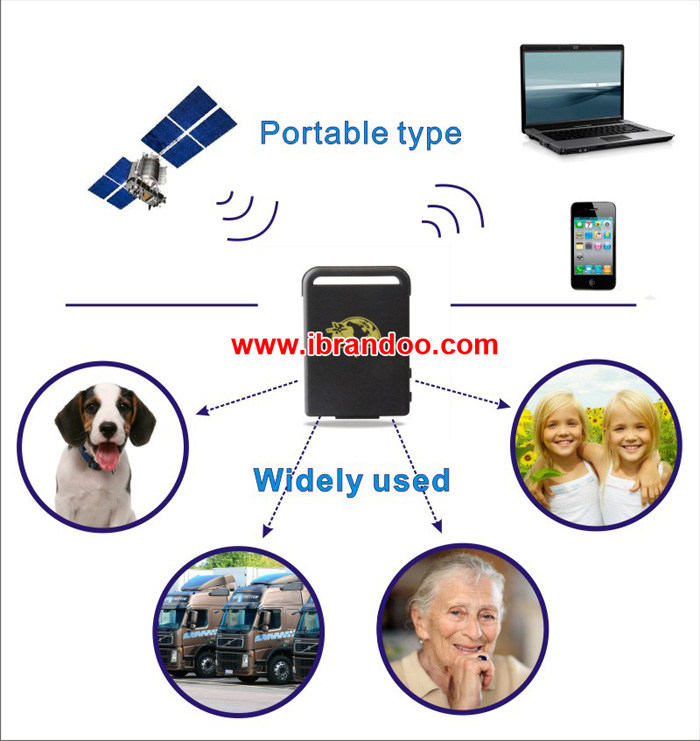

Working diagram


Sim slot inside

Works with a chargeable battery

Small size

Complete kit


Item Parameter
Dimension 46(L)x64(W)x17(H) mm
Weight 50g
Network GSM/GPRS
Band 850/900/1800/1900Mhz
GSM sensitivity Less than -102dBm
GPS chipset SirF III chipset
GPS sensitivity -159dBm
GPS accuracy 5m
Cold/ Hot TTFF 35/2s
Car charger 1224V input, 5V ouput
Wall charger 110220V input, 5V output
Battery Power 3.7V DC Li-Ion Battery,700mA
Battery Life About 48hours
Operating Temperature -10 to +65
Storage Temperature -20 to +70
