OEM/ODM 1 channel SD DVR module Model: BD-300P

This is a 1 channel SD DVR module. Functions customized available. Hardware and software modificated available.
  • Details

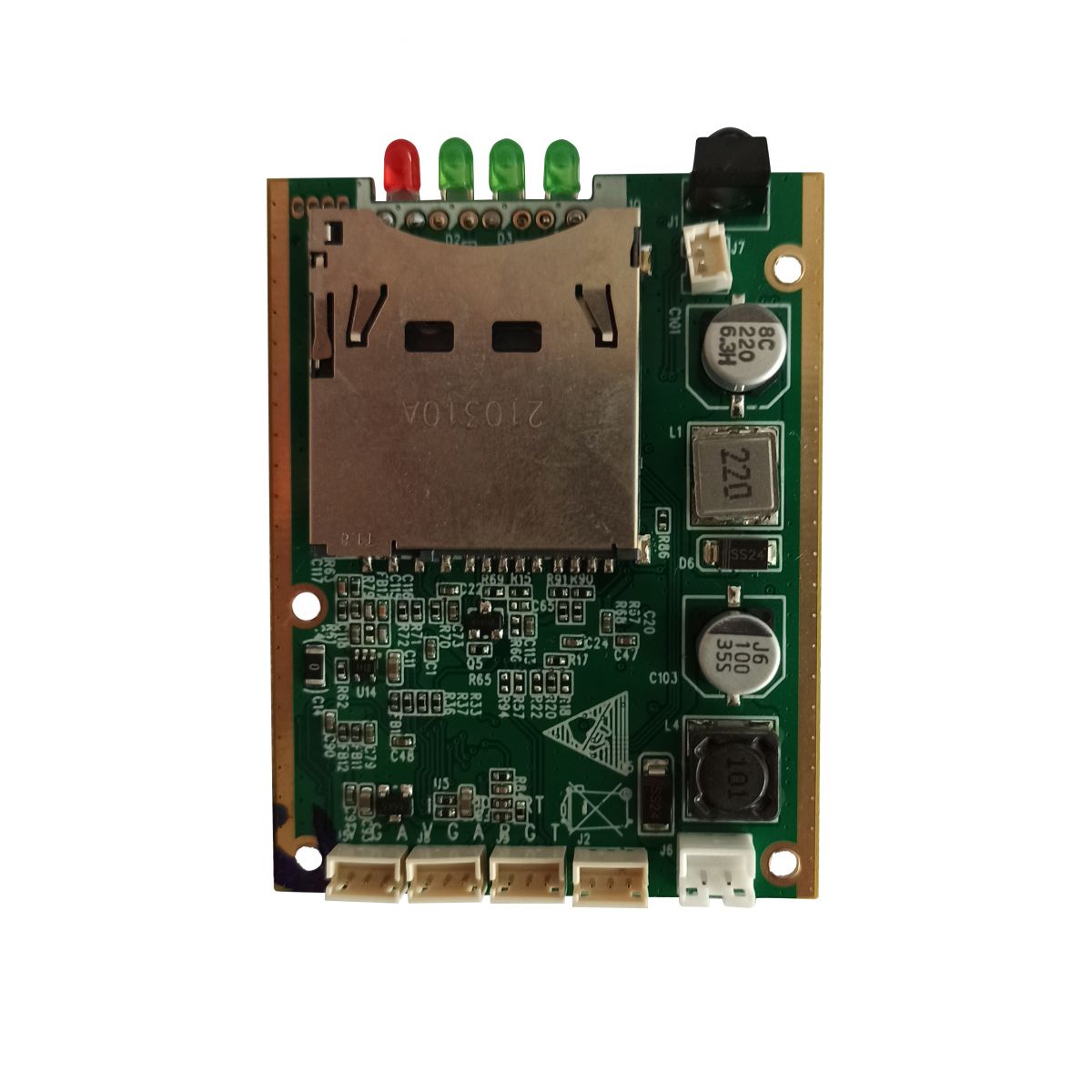

  As you see, this is a very small size (45.8mm x 59.8mm) SD DVR module. We open all functions for customized with UI, function, and also language. This DVR module has alarm I/O for recording start and stop.

  Some of our customers installed this board into auto door, video door phone, camera case, inspecition system, hericopter model and so on. the small size helps easy installation.

Feature:
>MPEG-4 Compression
>D1 resolution at 704*576. DVD picture quality up to 500 TV line.
>Remote control supported
>Time stamp on videos and pictures
>Overwriting when memory is full
>Record video or snap shot optional
>5, 15, 25 frame per second optional
>Support 32GB SD card memory (HCSD card supported also)

>recording mode: manaully,motion detection,power up, scheduled,and alarm I/O

Mini size can be easy installed in your current case

Board interface instruction

Some OEM cases


Alarm input to trigger DVR start recording


Specifications

Item Data
Format Mpeg-4, Video for ASF
Resolution 704*576
Frame 30f/s, 15f/s, 5f/s
Video input 1V,75Ω
Video output 1V,75Ω
Remote control Support
Media SD/ SDHC Card for 32GB
Manual recording yes
Schedule recording yes
Motion detective recording yes
Power up recording yes
Electricity Input DC 8V-32V
Working electricity <150MA
Power expend <2W
G.W./Set 350g
Gift box size 124x100x75 mm
Language
English, Traditional Chinese, Simple Chinese (customized)
