Portable DVR
Police body camera Model BC002
This is a portable recorder designed for police used. 1080P HD resolution, support 3G/4G/GPS/WIFI. IP 68 can be customized.
- Details
Features:
> Ambarella A12 chip
> 1920X1080 HD resolution
> 125 degree wide view angle
> 4-7 hours working battery
> 3G/4G/GPS/WIFI function optional
> 10m night vision
> 16GB/32GB/64GB/128GB internal memory
> IP68 customizeable
Camera instruction

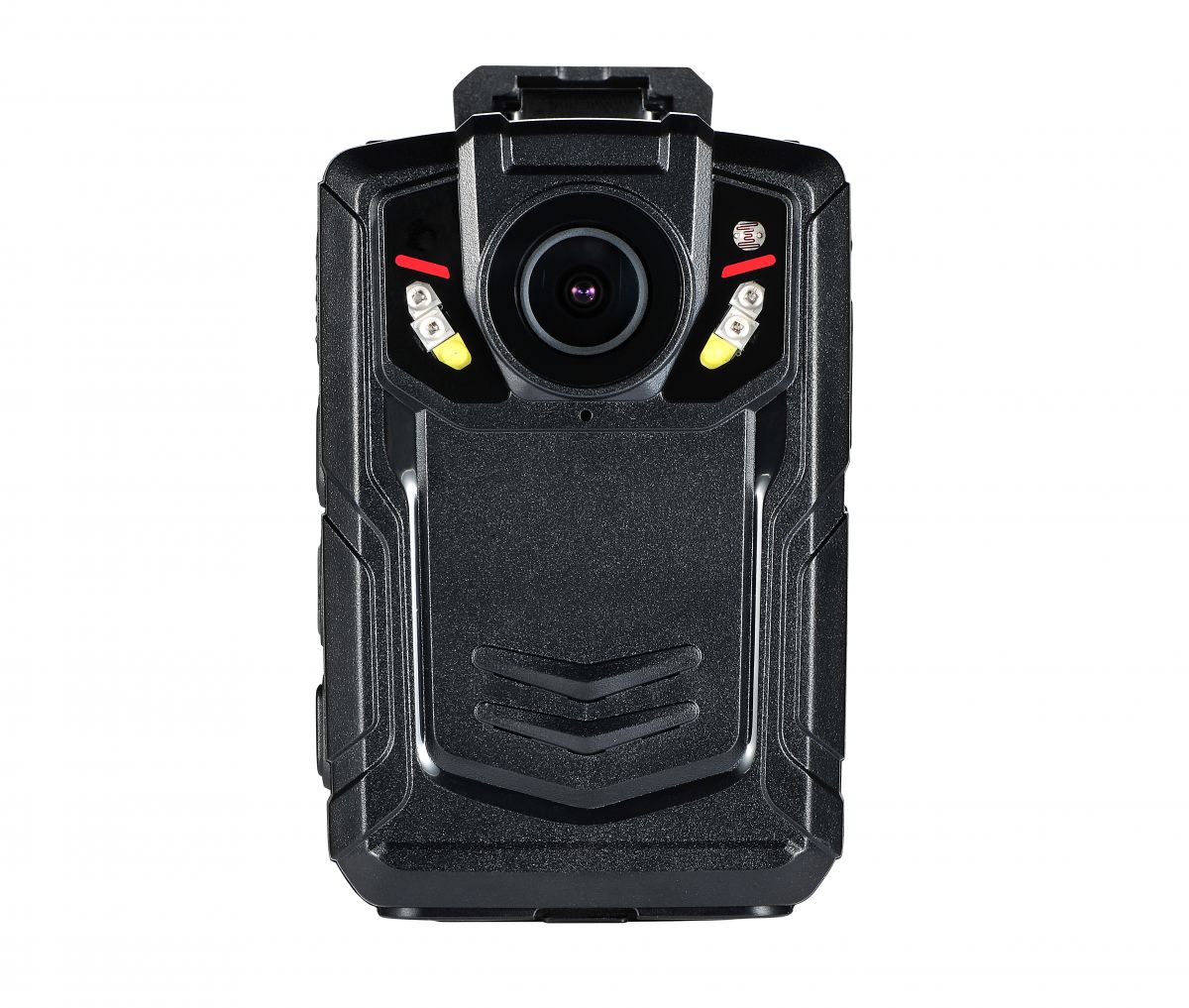

Face

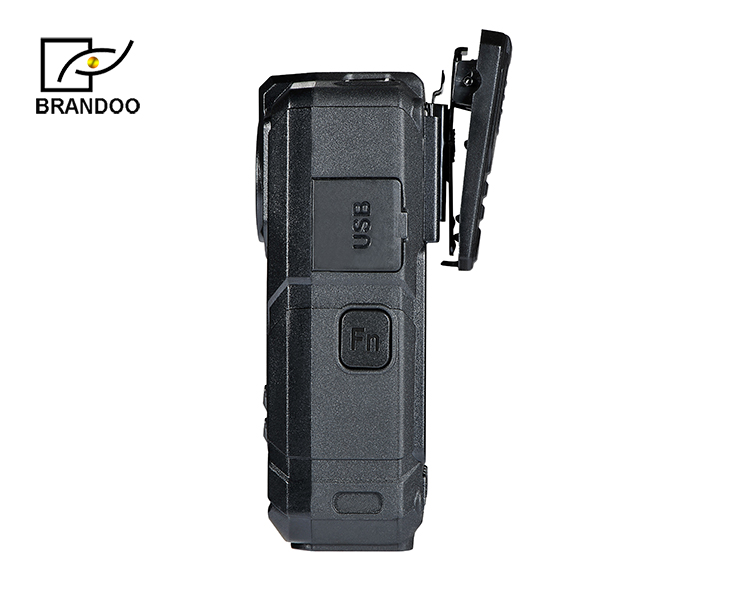

Right side
Left
LEC screen on rear side
Camera top
Camera with clip
Accessories
Specifications:
| Chipset | Ambarella A12(S2Lm) | |||
| OS | Linux 3.10.73 | |||
| Startup Time | < 8 Seconds (From power on to recording) | |||
| Image Sensor | 1/3"color CMOS sensor, 4MP | |||
| Image Angle | HOV ≥125° | |||
| Light Compensation | Infrared Light, range up to 10 meters | |||
| IR-Cut | Automatic | |||
| IR Light | 4 IR lights | |||
| Night Vision | Up to 10 Meters with Visible face image | |||
| Snap shot | JPG, up to 32M(7680x4288) pixel | |||
| Video Format | H.264 | |||
| Recording Resolution | 1920×1080p30 | |||
| Low Bit Rate | Ambabrella Smart AVC technology for volume saving | |||
| FPS | 30fps | |||
| Audio Format | PCM | |||
| Dewarp | Dewarp processing for fish eye lens or wide angle lens | |||
| Playback | 16X Fast Forward/ Reward | |||
| LCD | 320x240, 2.0 inch TFT-LCD High-Resolution Color Display | |||
| LCD brightness | >200cd/㎡ | |||
| Water Mark | User ID, Time and date Stamp,GPS coordinates Imbedded into Video. | |||
| Data Port | Mini USB & 14pin Auxiliary port | |||
| Storage Capacity | 16GB/32GB/64GB/128GB (Standard 16GB) | |||
| GPS | Internal GPS module with time synchronize(optional) | |||
| Battery Capacity | Replaceable battery, 2600mAh each (built-in) | |||
| Charging time | ≤4 hours (use the standard power adaptor) | |||
| Charging Base | For battery charging and data transmission | |||
| Pre-record | 30s / 20s / 10s / Off adjustable | |||
| Post-record | 60s / 30s / 10s / Off adjustable | |||
| Low Power Consumption | <1.2W (without GPS, WIFI, 4G_LTE working) | |||
| 4G standby consumption | 2mA standby current with remote data wake up | |||
| Continuous working time | >12 hours 1080p30 recording (with one backup battery) | |||
| Build-in Modules | Optional GPS, WIFI, 3G/4G_LTE | |||
| Dimension | 59.8*34.4*88.3мм | |||
| Weight | 165g | |||
| Working Temperature | -30℃ ~ 55℃ | |||
| Water Proof | IP65 (IP68 customizeable) | |||
| Parameter settings | LCD menu | |||
| Wireless (optional) | WiFi and 3G/4G_LTE | |||
