Bus/taxi camera

Dual lens Car camera Model CAM-052

This is a METAL housing,DUAL LENS car camera works in 12V only. Users available to turn camera view direction by self.


  • Details


> SONY CCD, 700TVL (2pcs)

> Metal housing cased

> IR night vision

> Any view direction supported

Free view direction adjustable



Item Data
Picture Elements 976 Hx 582V
Horizontal Resolution 700TVL
Sensitivity Lux at F1.2 (Infrared LED On)
Scanning System 625TVL
2:1 Interlace
Synchronization Internal
Infrared Spectrum 850nm
S/N Ratio More than 50 dB, (AGC Off)
Auto Gain Control (AGC) Auto
White Balance Auto
Electronic Shutter Auto
Back Light Compensation  Auto
Infrared LED 12 LEDs
Infrared LED Range 8m
Video Output 1 Vp-p, 75Ωcomposite , 4 Pin Din
Audio Output Option
Mirror N/A
Gamma Ratio 0.45
Lens F3.6mm Standard Lens
Exterior Focus Adjustment  N/A
Lens Mount M12XP0.5mm Thread
Pan Adjusting 0-360°
Tilt Adjusting 0-40°
Power Supply 12V DC ±10%
Power Consumption 220mA

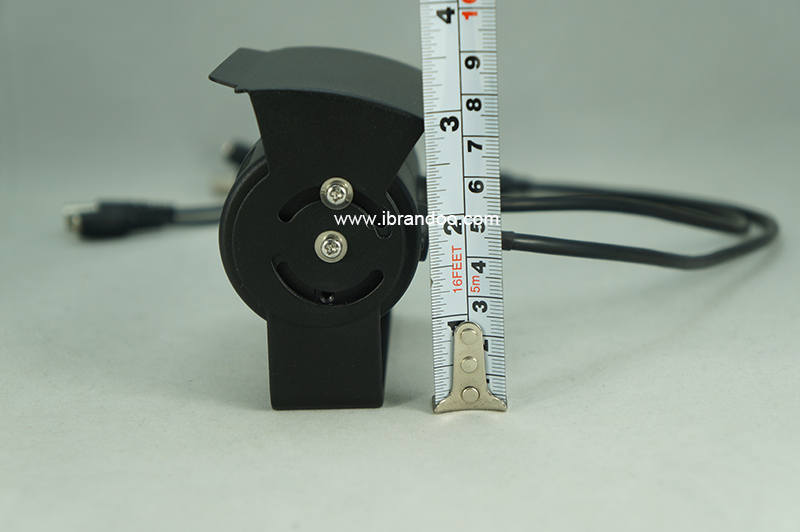

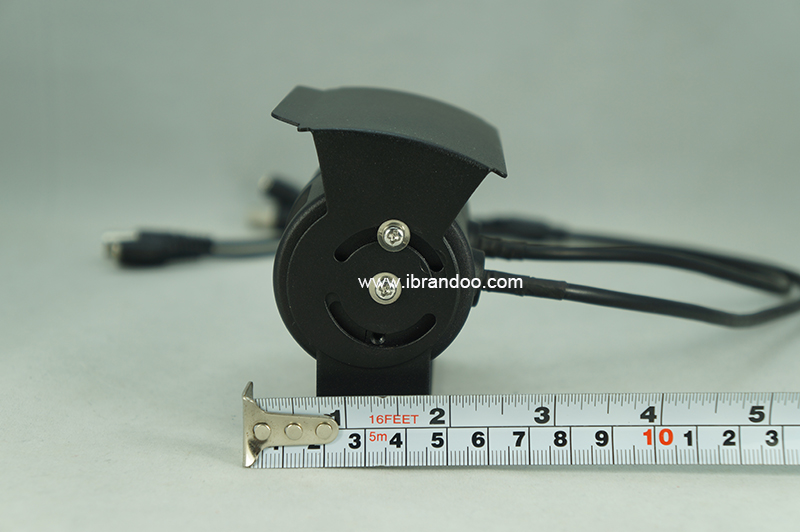

Dimensions (L X W X H) 95 x 60 x 85mm
Net Weight 480g
Operating Temperature -25°C to +70°C
