HD to USB capture Card

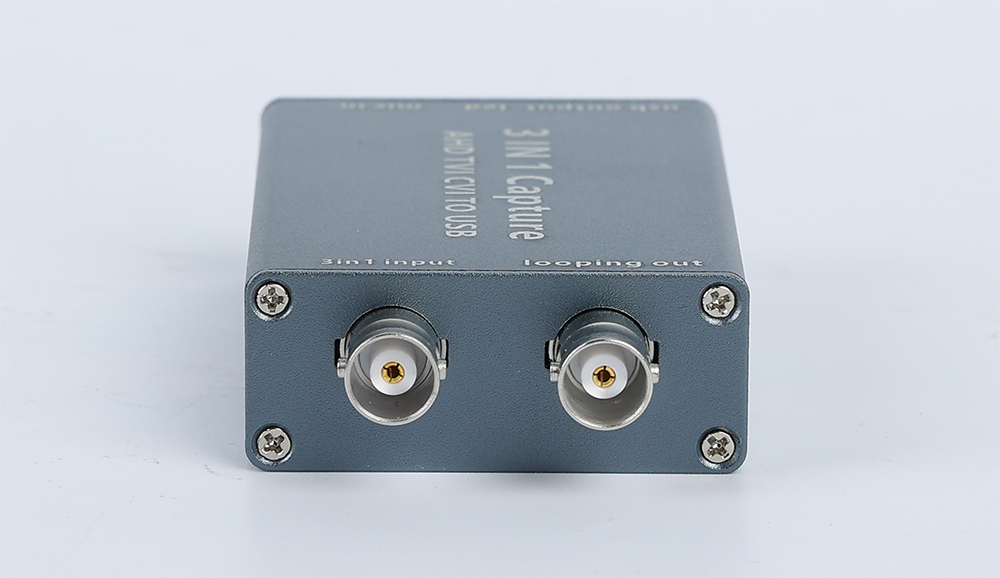

AHD TVI CVI to USB 3 in 1 Multi Video Signal Capture Card Model A2U3
This is a 3 in 1 capture card which support AHD/TVI/CVI signal input, and USB output to computer. It capture video and audio both, it is a high cost effective AV capture card which support UVC/UAC STANDARD. The output port is USB 3.0. It compatible Windows, Linux and also Android system. It is a plug and play tools for HD AV capture.
- Details
Features:
>AHD/TVI/CVI Video signal input
>USB signal output
>Support UVC/UAC Standard.
>USB 3.0 output
>Compatible with Windows/Linux/Android/Mac
>Free Drive
Parameters
|
In/out put port |
BNC |
|
Input signal |
AHD TVI CVI （Max. 1080P 2MP） |
|
Output port |
USB3.0 |
|
Video resolution for output |
1920*1080、1600*1200、1360*768、1280*1024、1280*960、1280*720、1024*768、800*600、720*480、720*576、640*480 |
|
Frame rate |
5-60 frame adjustable |
|
A/V capture |
Standard UVC/UAC |
|
Driver |
Driver free |
|
Operation system |
Windows/Linux / Android/MAC |
|
Compatible software |
OBS/Potplayer（Windows） |
|
Consumption |
＜3Wat |
|
Working temp. |
-20℃-65℃ |
|
Working Humd. |
5%-90% |
|
Dimension |
97mm*51mm*21mm |
|
Weight |
90g |
